 Wire Over-Braided Flexible Liquid Tight Metal Conduit ( YF-705 ) Heavy Series

Over Braided Flexible Conduit for Petrochemial Industry Wiring (Hazardous Locations Cable Conduit)
EMI/RFI Shielding Flexible Conduit
delikon.com
Liquidtight Flexible Shielding Conduit most suitable for demanding industrial wiring applications.

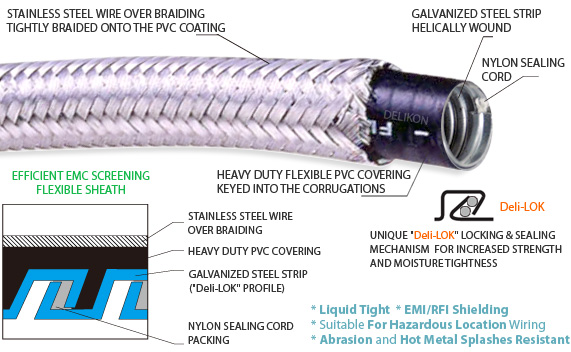

*Galvanized steel helically wound with PVC covering and wire over-braid.
*Trade size: 3/8"~6" (Deli-LOK Locking system, with Nylon cord packing.)  braided liquidtight conduit
Other packing materials, such as rubber wire, or copper wire is also available.
*Liquid-tight *EMI/RFI shielding *Explosion proof (Suitable for use in Hazardous Location)
*High tensile strength *Resists hot metal splashes     braided liquidtight conduit
Heavy series over braided metal liquid tight conduit and fittings are suitable for industrial enviroments, expecially suitable for protections of machineries cables and wiring in wet and hazardous locations.
Heavy series over braided metal liquid tight conduit and fittings are suitable for industrial enviroments, expecially suitable for protections of machineries cables and wiring in wet and hazardous locations. This over braided liquid tight conduit is excellent in protecting cables against metal particles and against vandalism or rodents.

Heavy Series Over Braided Metal Liquid Tight Conduit Suitable for airport wirings,industry automation...
  • MADE FROM TYPE YF-706 LIQUIDTIGHT CONDUIT WITH WIRE OVER-BRAID:
    *Wire over-braiding provides more abrasion resistant, EMI/RFI shielding and resistance to hot metal splashes.
    *    Explosion proof (Class I, Div. 2 and Classes II and II). Liquid-tight.
    *Durable and long life.
    *High tensile strength.
    *Inner core made from  galvanized steel strip.
    *Deli-LOK construction with packing for more tensile strength and moisture tightness.
    (IP67 PROTECTION)
     *Other packing materials: copper bonding (grounding) wire, PVC wire packing is also available.
    high strength metallic overbraided flexible liquid tight metal conduit
    Applications:
    Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required. It is also designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission.
     Delikon Flexible Conduit For Industry Wirings
    Over Braided Metal Liquid Tight Conduit is most suitable for protecting vulnerable industrial cables.

    Relate    d Products:
    Liquid tight flexible conduits
    >>> Model YF-706
    Liquid tight flexible steel conduit
    Flexible Metal Liquid Tight Conduit



    Water proof, EMI shielding
    >>> Model YF-704
    square locked for high-flex applications
    BRAIDED Flexible metallic conduit, water proof



    Over braided Flexible Conduit for EMI shielding or abrasion resistance. All metal conduit.
    >>> Model SM70001
     Braided flexible steel conduit
    Flexible metal conduit for heavy mechanical stress


     >>> Model PBF
     Braided Nylon Conduit for Industry RobotsBraided
    Nylon Conduit
    system


    Heavy Series Over Braided Flexible conduit system
    Heavy Series Over Braided Flexible conduit system

    Delikon Stainless Steel Flexible Conduit and Conduit Fittings for fire alarm sprinkler system, burglar alarms, fire and smoke detectors, and warning signals cable protection
     Delikon Stainless Steel Flexible Conduit and Stainless Steel Conduit Fittings for fire alarm sprinkler system, burglar alarms, fire and smoke detectors
    DELIKON STAINLESS STEEL LIQUID TIGHT CONNECTOR, STAINLESS STEEL LIQUID TIGHT CONDUIT SYSTEM
    Nylon flexible conduit and fittings system for electrical equipment wiring
    Nylon flexible conduit system

   Stainless steel liquid tight conduit
   Stainless steel liquid tight conduit and stainless steel liquid tight fititngs best for corrosive environment such as chemical industry cable harness
Flexible conduit
Heavy Series Over Braided Flexible Conduit and Conduit Fittings For Mining and Metal Industry Wirings
Heavy Series Over Braided Flexible Conduit and Conduit Fittings For Mining and Metal Industry Wirings

Delikon Flexible Conduit and Fittings Systems for Automotive Wiring Harness and Heavy Duty Vehicle Wiring LoomDelikon Over Braided Flexible Conduit and Braided Flexible Conduit Connector for Automotive Wiring Harness and Heavy Duty Vehicle Wiring Loom
EMI/RFI Shielding Liquid-Tight Metal Conduit: This conduit is designed to protect sensitive electronic circuits wirings in applications such as industry automation, airport communications, radar and data transmission from Electro-Magnetic and Radio Frequency Interference (EMI / RFI). Most suitable for radar equipments, airports, CNC machineries and PLC wirings in industrial environments. Liquid Tight

EMC Shielding Over Braided Liquid tight Steel Conduit

 Over braided flexible conduit systems for steel mills and heavy industry wirings
 Over Braided Flexible Metal Conduit resists abrasion or hot metal splashes for machine wirings
Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meters/Coil
MIN. MAX. MIN. MAX.
YF-70503 3/8" 12.3

12.8

18.5 19.0 75 50
YF-70504 1/2" 15.7 16.3 21.8 22.3 95 50
YF-70506 3/4" 20.7 21.2 26.2 27.7 120 30
YF-70510 1"

26.2

26.8 33.8 34.4 180 30
YF-70512 1-1/4" 34.7 35.4 42.4 43.2 230 20
YF-70514 1-1/2" 40.0 40.6 48.4 49.3 270 20
YF-70520 2" 51.3 51.9 60.4 61.3 300 15
YF-70524 2-1/2" 62.9 63.6  73.1 74.0 350 10
YF-70530 3" 77.9 78.7 88.9 89.9 500 10
YF-70540 4"  101.6 102.6 114.3 115.3 650 5

5" & 6" large size over braided liquid tight conduits are constructed with a fully interlocked strip for added strength and to prevent unraveling.

Over Braided Liquid tight conduit with Interlocked Construction
    Delikon Interlocked
YF-70550 5" 126.0 128.0 133.0 135.0 800 5
YF-70560 6" 149.0 151.0 156.0 158.0 1000 5
Large diameter Over Braided Liquid Tight Conduit is used or mining industry, petro chemical industry, metal industry, water treament plant and power station cable protection.
www.delikon.com
Download the catalog page for DELIKON YF-705 Over Braided Liquid Tight ConduitDownload the catalog page for DELIKON YF-705 Over Braided Liquid Tight Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.
delikon.com
Over braided flexible conduit for industry automation cable protectionHeavy Series Over Braided Liquid Tight Conduit
Galvanised flexible Steel Conduit,Smooth PVC Covering,Metal Overbraid Galvanised flexible Steel Conduit,Smooth PVC Covering,Metal Overbraid
Type YF-705 is a stainless steel braided version of Liquidtight Metallic Conduit. It is mainly used in extreme abuse environments (with massive mechanical strength). Braided liquidtight conduit is used for applications requiring a high degree of mechanical strength and flexibility. It is suitable for outdoor use and is used for exposed wiring underneath railway rolling stock. It also provides EMI screening for data cables.
Delikon innovative Flexible Conduit Systems for steel plant upgrading, equipment refurbishment and repair, protecting cables and hoses that convey power, electricity, air, or fluid.
Delikon Heavy Series Over Braided Flexible Conduit and Fittings protect electrical and automation equipment cables of steel making plant. Heavy Series Over Braided Flexible Conduit for IRONMAKING AND STEELMAKING control systems, PLC, drive systems, motors cables.
Delikon Heavy Series Over Braided Flexible Conduit and Fittings protect electrical and automation equipment cables of steel making plant. Heavy Series Over Braided Flexible Conduit for IRONMAKING AND STEELMAKING control systems, PLC, drive systems, motors cables. Modern steel mills must fulfill the requirements of high productivity and yield, tight dimensional tolerances, enhanced mechanical properties and improved surface quality. When Converting existing equipment to match new duties, or to improve efficiency and remove process bottlenecks at plants, Delikon Heavy Series Over Braided Flexible Conduit and Fittings are here to provide additional mechanical protection, hot metal splash resistance, as well as EMI sheilding to steel mill automation control and electrical cables.or modifying existing equipment to improve availability, extend life and resolve maintenance issues, or upgrading existing equipment to leverage current technology and get the best return on existing plants, Delikon Heavy Series Over Braided Flexible Conduit and Fittings are here to provide additional mechanical protection, hot metal splash resistance, as well as EMI sheilding to steel mill automation control and electrical cables.

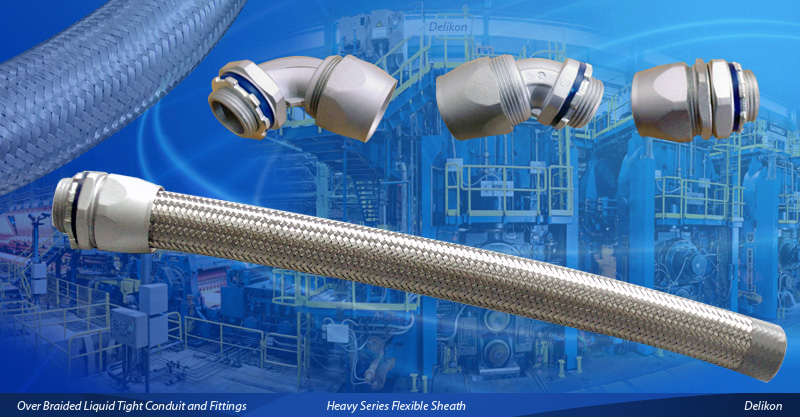

Over Braided Interlocked Liquid Tight Conduit and Fittings
 Heavy series Over Braided Flexible Conduit & Fittings provide protection for industrial electrical cables against water, oil, grease, solvents, and the outer braiding provides protection against hot metal sparks and slag.		 Over Braided Interlocked Liquid Tight Conduit and Braided Conduit Fittings
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect floating liquefied natural gas FLNG facility and LNG facility The space limitations can lead to difficulty with floating LNG facility equipment power and data cables maintenance, and repair or replacement can be difficult as well. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector is designed to provide mechanical protection as well as emi shielding to FLNG process equipment cables.
MS Plug fitting Adapter Connecting Flexible Conduit to Military Connector Servo motor cable protection Heavy Series Over Braided Flexible Conduit with MS Plug Adapter
 Flexible Conduit and Fittings For CNC machineries and PLC wirings
 Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter for Servo Motor Cable finds wide applications in protecting industrial machines automation cables.
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.   flexible conduit     Also Refer To: Braided Flexible Metal Conduit
Delikon Heavy Series Swivel Connector for braided flexible conduit
Delikon Heavy Series Swivel Connector		 Delikon Heavy Series Over Braided Flexible Conduit and Fittings for Industry 4.0 Factory and Machine Automation cable protection

 Delikon, a recognized leading manufacturer of flexible conduit and fittings system for industrial automation cables protection, has launched a full range of heavy series over braided flexible conduit and fittings specifically designed to protect Industry 4.0 high end sensors and control unit wirings, and drive and control system wirings, ensuring secure, and reliable communications in Factory and Machine Automation.

 Cable Protection Solutions for the Metals Industry

Delikon Heavy Series Over Braided Flexible Conduit and Fittings help the metals industry grow in a sustainable way, providing mechanical protection as well as EMI shielding to medium voltage variable speed drive cables. Delikon Heavy Series Over Braided Flexible Conduit and Fittings also protect wirings of motion control products and systems that bring your machine to life.
Delikon heavy series over braided flexible conduit and fittings provide application specific cable protection solutions for the Automotive industry
Delikon heavy series over braided flexible conduit and fittings provide application specific solutions for the Automotive industry

As a long term partner of the Automotive industry, Delikon offers a comprehensive range of flexible conduit, fittings and cable protection solutions across all steps of the automotive manufacturing, as well as customized solutions for infrastructure.

Delikon heavy series over braided flexible conduit and fittings offer innovative cable protection solutions for the Automotive industry. Reliable power distribution for efficient and flexible production is ensured. The Integrated emi shielding solution from Delikon over braided flexible conduit system sharpens Automotive manufacturer competitive edge by enabling efficient mechanical and hot metal sparks as well as emi shielding of power and data cables of protection and measurement devices and multi spot welding equipment, ensuring reliable Automotive plant operation. Delikon EMI Shielding Heavy Series Over Braided Liquid Tight Conduit and Connector protects automotive and steel industry automation cable.
Delikon Industry 4.0 Flexible Conduit and Fittings

Over Braided Flexible Steel Conduits for heavy industryFor Industry Automation Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
Heavy series flexible conduit fittings,heavy series connector Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
Y Y Y Y Y Y Y Y Y Y Y Y Y
