Corrugated Nylon Flexible Conduit Fittings (Angle Nylon Connector)

* Most suitable for flexible corrugated nylon conduit

* All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
* Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
* Smooth internal surfaces provides for easier wire routing, protection, and installation.

Liquid Tight

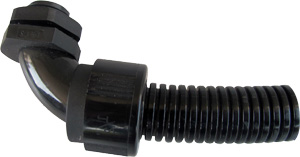

Angle Nylon Connector (PF threads)

Model No.	Trade Size	Dimension (mm)					PF (G) Threads
Model No.	Trade Size	I.D.	A	B	C	D	PF (G) Threads
PFL-03B	3/8”	11.3	20.6	28.0	13	46.2	PF 1/2”
PFL-04B	1/2”	14.4	20.6	34.5	13	53.1	PF 1/2”
PFL-06B	3/4”	18.3	26	42.0	15	66.8	PF 3/4”
PFL-10B	1”	24.4	32	48.5	18	69.5	PF 1”
PFL-12B	1-1/4”	32.7	42	58.0	18	85	PF 1-1/4”
PFL-20B	2”	48.8	60	70.5	21	97	PF 2”

Angle Nylon Connector (PG threads)

Model No.	Trade Size	Dimension (mm)					PG Threads
Model No.	Trade Size	I.D.	A	B	C	D	PG Threads
PGL-02-5B	5/16”	9.0	15.2	25	10	37.5	PG 9
PGL-03-1B	3/8”	11.3	18.6	28	10	40.6	PG 11
PGL-03-2B	3/8”	11.3	20.4	28	10	41.3	PG 13.5
PGL-04B	1/2”	14.4	22.5	34.5	12	50.6	PG 16
PGL-06B	3/4”	18.3	28.3	42	12	65	PG 21
PGL-10B	1”	24.4	37.0	48.5	12	61.7	PG 29
PGL-12B	1-1/4”	32.7	47.0	58	12	79.5	PG 36
PGL-20B	2”	48.8	59.0	70.5	15	91.5	PG 48

Angle Nylon Connector (Metric threads)

Model No.	Trade Size	Dimension (mm)					Metric Threads
Model No.	Trade Size	I.D.	A	B	C	D	Metric Threads
PML-025M12	5/16”	9.0	12	24.3	12	37.5	M12 X 1.5
PML-025M16	5/16”	9.0	16	24.3	12	37.5	M16 X 1.5
PML-03M16	3/8”	11.3	16	27	12	40.6	M16 X 1.5
PML-03M20	3/8”	11.3	20	27	13	40.6	M20 X 1.5
PML-04M20	1/2”	14.4	20	34.5	13	50.6	M20 X 1.5
PML-04M25	1/2”	14.4	25	34.5	13	50.6	M25 X 1.5
PML-06M25	3/4”	18.3	25	42	13	65	M25 X 1.5
PML-06M32	3/4”	18.3	32	42	15	65	M32 X 1.5
PML-10M32	1”	24.4	32	48.5	15	61.7	M32 X 1.5
PML-10M40	1”	24.4	40	48.5	15	61.7	M40 X 1.5
PML-12M40	1-1/4”	32.7	40	58	15	79.5	M40 X 1.5
PML-12M50	1-1/4”	32.7	50	58	15	79.5	M50 X 1.5
PML-20M50	2”	48.8	50	70.5	15	91.5	M50 X 1.5
PML-20M63	2”	48.8	63	70.5	15	91.5	M63 X 1.5

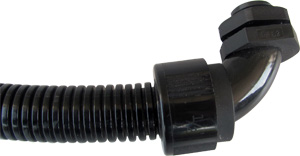

This angle nylon connector is most suitable for use with Corrugated Nylon Conduit (model PB) for industry cable management.

It provides a smooth, gradual radius bend. Wiring is easily pulled or pushed through fitting and there are no sharp edges to strip wire.
