Over Braided Flexible Conduit Connector

Over Braided Flexible Conduit Connector, Conduit Fittings for heavy series flexible sheath
( Straight Connector: YABS. 90 Degrees Connectors: YALS. 45 Degrees Connectors: YAHS)

All metal construction, heavy seriesConduit Fittings are most suitable for high temperature wirings.
Or with plastic sealing components for liquid tight applications. Metal clamping ring design provides positive shielding termination.
Most suitable for over braided flexible conduit and flexible metal conduit. Trade size: 1/4" - 6"
Available with G, ISO228-1, Metric, PF; NPT or PG threads. Male or Female Threads

Delikon Heavy Series Over Braided Flexible Conduit, Heavy Series Braided Conduit Fittings protect servo, feedback motor cables, PLC cables, control cables, instrumentation cables. Reducing or eliminating electromagnetic interference (EMI) for cables. Delikon heavy series over braided flexible conduit and connector are particularly recommended for protecting supply cables between frequency converters and servo motors.
For the wiring of machines and system controls, Delikon heavy series braided conduit connector provides High Pull-Out Resistance, Robust Performance, Long Life Expectancy, Fastest and Easy installation.

For use with braided flexible conduit systems: Positive clamping of both the inner conduit and braiding

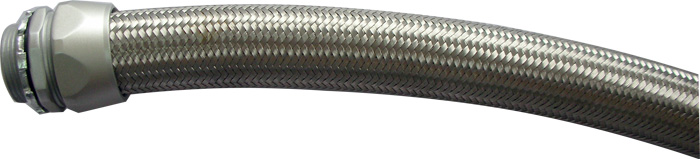

Straight Heavy Series Flexible Conduit Fittings

Straight Connector (fixed type)	Model	Size	0 degree Heavy Series Fixed	Model	Size
	YABS-02B	1/4"		YABS-20B	2"
	YABS-03B	3/8"		YABS-24B	2-1/2"
	YABS-04B	1/2"		YABS-30B	3"
	YABS-06B	3/4"		YABS-40B	4"
	YABS-10B	1"		YABS-50B	5"
	YABS-12B	1-1/4"		YABS-60B	6"
	YABS-14B	1-1/2"

Straight Connector (swivel type)	Model	Size	0 degree Heavy Series Swivel	Model	Size
	YABSR-02B	1/4"		YABSR-14B	1-1/2"
	YABSR-03B	3/8"		YABSR-20B	2"
	YABSR-04B	1/2"		YABSR-24B	2-1/2"
	YABSR-06B	3/4"		YABSR-30B	3"
	YABSR-10B	1"		YABSR-40B	4"
	YABSR-12B	1-1/4"

The external thread swivels about the main body. It can be used with threaded entries or knockout secured with a locknut. Most suitable for installations requiring motion, vibration and bending. Delikon heavy series Swivel Connector protects data or power cables of electric motor,blower, pump,polishing machine, grinding machine, or any other applications where there is vibration

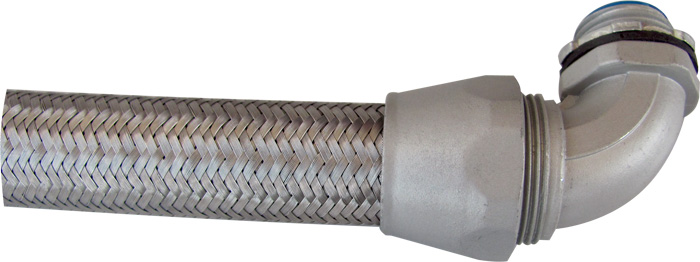

90 Degrees Heavy Series Conduit Fittings

90 Degrees Connector (fixed type)	Model	Size	90 degrees Heavy Series Fixed	Model	Size
	YALS-03B	3/8"		YALS-14B	1-1/2"
	YALS-04B	1/2"		YALS-20B	2"
	YALS-06B	3/4"		YALS-24B	2-1/2"
	YALS-10B	1"		YALS-30B	3"
	YALS-12B	1-1/4"		YALS-40B	4"

90 Degrees Connector (swivel type)	Model	Size	90 degrees Heavy Series Swivel	Model	Size
	YALSR-03B	3/8"		YALSR-14B	1-1/2"
	YALSR-04B	1/2"		YALSR-20B	2"
	YALSR-06B	3/4"		YALSR-24B	2-1/2"
	YALSR-10B	1"		YALSR-30B	3"
	YALSR-12B	1-1/4"		YALSR-40B	4"

	Heavy Series Connectors are specially designed for heavy series over braided flexible conduit. These Heavy Series Conduit Fittings provide positive clamping on both the braiding and the inner conduit for heavy duty industry wiring applications.

	Delikon Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing.

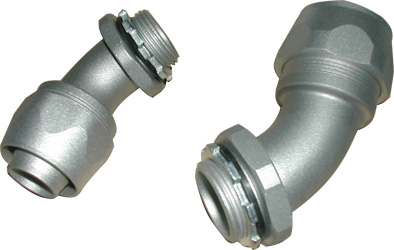

45 Degrees Heavy Series Conduit Fittings

45 Degrees Connector (fixed type)	Model	Size	45 degrees Heavy Series Fixed	Model	Size
	YAHS-02B	1/4"		YAHS-14B	1-1/2"
	YAHS-03B	3/8"		YAHS-20B	2"
	YAHS-04B	1/2"		YAHS-24B	2-1/2"
	YAHS-06B	3/4"		YAHS-30B	3"
	YAHS-10B	1"		YAHS-40B	4"
	YAHS-12B	1-1/4"

45 Degrees Connector (swivel type)	Model	Size	45 degrees Heavy Series Swivel	Model	Size
	YAHSR-02B	1/4"		YAHSR-14B	1-1/2"
	YAHSR-03B	3/8"		YAHSR-20B	2"
	YAHSR-04B	1/2"		YAHSR-24B	2-1/2"
	YAHSR-06B	3/4"		YAHSR-30B	3"
	YAHSR-10B	1"		YAHSR-40B	4"
	YAHSR-12B	1-1/4"

Connectors for flexible metallic conduit, for braided flexible conduit. All Heavy Series Flexible Conduit Metal Connectors are Available with G, ISO228-1, Metric, PF; NPT or PG threads. Male or Female threads.

Download the catalog page for DELIKON YABS, YALS, YAHS Heavy Series Conduit Connector for braided conduit in PDF File format. Also refer to Heavy Series Over Braided Flexile Conduit for industry cable management.

Heavy Series Flexible Conduit Fittings are most suitable for use with Over Braided Flexible Conduit for industrial cable management DELIKON heavy series Over Braided Flexible Conduit conduit Fittings protect CNC machine cables	Delikon Heavy Series Over Braided Flexible Conduit and Over Braided Flexible Conduit Fittings are designed for aluminum smelting plant, aluminum processing plant and other metal industry power and control cable protection.

	YF-705	SM-701	YF-704	SM70001


	SC	AT-SL-BRAIDED	PBF	WNS/ORC

Over Braided Flexible Steel Conduits for heavy industry

Most suitable For Industry Automation and Control Cables Management

Delikon heavy series over braided flexible conduit and heavy series braided conduit fittings protect electrical and control cables in Aluminum Smelting Plant, Aluminum Foundry, Aluminium Extrusion Plant, Aluminum Finishing Plant. Delikon heavy series over braided flexible conduit systems are also widely used in steel mills or other metal industry.

Delikon heavy series over braided flexible conduit systems are superior in their ability to withstand heat, moisture and molten material splash and are highly resistant to mechanical and physical abuse. The overall stainless steel braid provides slag protection.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit System protects metal industry automation drive and control data and signal cables for high noise level locations of heavy processing plants such as steel mills and foundries. Delikon heavy series connector with metal clamping ring design provides positive shielding termination. Industrial applications such as the factory floor are typically electrically noisy environments. Electrical noise, either radiated or conducted as electromagnetic interference (EMI), can seriously disrupt the proper operation of equipments. The primary way to combat EMI in cables is through the use of shielding. Delikon heavy series over braided conduit system is providing additonal mechanical protection as well as EMI shielding to drive and control cables of intelligent industry automation to ensure a frictionless flow of data and material.

Delikon Heavy Series Over Braided Flexible Conduit,Conduit Connector for steel industry automation cabling solutions

Delikon Heavy Series Over Braided Flexible Conduit and Fittings for steel industry automation cabling solution

Delikon Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings are designed for steel industry control panels wirings, PLC wirings, Motion Control wiring, power and data cable protection, both for hot and cold rolling mills and for others specific to the steel industry.

In both control cabinets and system cabling, the key factor in achieving high availability of your electronic and electrical system is secure and fail safe connection of all components. Therefore, you need Delikon as a reliable single-source partner who can deliver high quality electrical flexible conduit and fittings.

Our Heavy Series Over Braided Flexible Conduit and Fittings systems provide you with a future-proof answer to increasingly exacting plant and machinery cable protection requirements. Engineered to meet the needs of all industry sectors especially the steel industry in a virtually limitless range of tasks, the superiority of our over braided flexible conduit systems provides installation efficiency, flexibility, reliability and cost effectiveness - in every application.
