Flexible Conduit and Fittings For Offshore & Heavy Industry Electrical Wirings

Delikon brings great experience and flexible conduits systems to Heavy Industry & Offshore Applications. These applications require the emphasis on safety, security, and longevity. It also requires ease of maintenance. EMI/RFI Shielding Conduits   Typical Applications   or by IP Ratings

Delikon Overbraided Flexible Conduit systems for petrochemical industry cable protections
Flexible Metallic Liquidtight & Waterproof Conduits These metallic liquidtight and waterproof conduits are used to protect the vital network of cables that transfer information and electricity. They combines the value-added benefits of durability, chemical resistance, waterproof connections, ease of installation, and reduced friction all in one cost-effective system. Braided-shield Flexible Metal Conduits        Braided-shield flexible conduit provides excellent Radio Frequency, as well as mechanical protection, resulting in improved data transmission.
	Heavy Industry

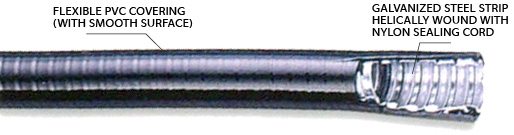

PVC Jacketed Flexible Metal Conduit, Water Proof     IP54        Model: YF-707

IP 54

A unique vacuum extrusion process allows this flexible metal conduit to have a thin PVC jacket which does not restrict the great flexibility characteristics of the inner core. It is suitable for use in both static applications where a tight bend diameter is needed and in dynamic use such as machining centers and robotics.

Liquid Tight Flexible Metal Conduit     IP67        Model: YF-706

IP 67

Flexible, sleek, with increased IP ratings, Liquid-tight flexible metallic conduit (LFMC) is suitable for use in a variety of environments and applications from general purpose wiring in wet or damp locations, to direct burial and in concrete embedment, to raised computer room floors and site lighting jobs.

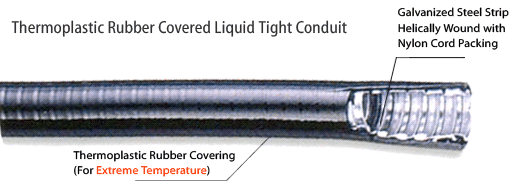

Thermoplastic Rubber Coated Steel Liquid Tight Conduit   IP67        Model: YF-906

IP 67

For Extreme Temperature Environments: -40C to +140C Type YF-906 Thermoplastic Rubber Covered Steel Liquid Tight Conduit is well suited for exposure to extreme climatic conditions. It is also widely used on industrial process equipment such as Annealing Ovens, Lumber Kilns, Foundries, Refrigeration, etc. It is a conduit designed to withstand an extreme temperature range. Used in situations where concerns of resistance to temperature exposure exist. These include heavy outdoor equipment, boilers, furnaces and sub-zero areas.

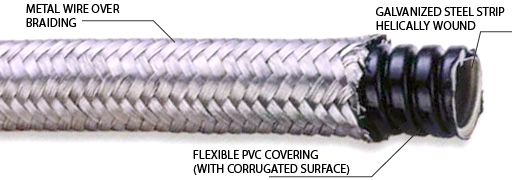

Braided Flexible Steel Conduit, Water Proof      IP54         Model: YF-704

IP 54

Clean data transmission in a noisy environment is an ever increasing requirement on today's crowded factory floors. Braided flexible steel conduit systems provide excellent EMI and RFI shielding, as well as mechanical protection, and water resistance, resulting in improved data transmission for factory automations. For Mining & Metal Industry

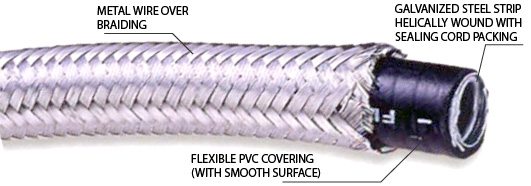

Braided Flexible Steel Conduit, LIQUID TIGHT     IP67        Model: YF-705

IP 67

This liquid tight conduit is designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission from Electro-Magnetic and Radio Frequency Interference (EMI / RFI). Most suitable for radar equipments, airports, CNC machineries and PLC wirings in industrial environments.

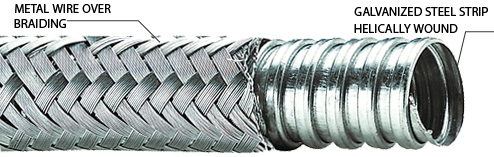

Braided Flexible Steel Conduit, All Metallic      IP40        Model: SM-70001

IP 40

Braided flexible steel conduit is used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. The SM-70001 is also excellent in protecting cables against metal particles and against vandalism or rodents. This braided flexible metal conduit is particularly used in (mechanical) critical situations, such as machine-building, steel works and in transport systems and security.

Overbraided flexible conduits are particularly suitable for installation in abrasive environments.

Braided Flexible metallic stainless steel conduit is ideal for applications where corrosion resistance and cable protection are critical, such as offshore and chemical plants.

Thermoplastic Rubber Coated Metal Liquid Tight Conduit for extreme temperature wiring For Extreme Temperature Environments: -40C to +140C Type YF-906 Thermoplastic Rubber Covered Steel Liquid Tight Conduit is well suited for exposure to extreme climatic conditions. Used in demanding offshore situations.

Delikon big size Metal Liquid Tight Conduit is suitable for industry and commercial liquid tight applications. Delikon Liquid Tight Conduit has been designed to excel in many applications including but not limited to machine and plant construction, CNC machines, motor and railroad power & signal systems. A whole line of liquid tight connectors are available.

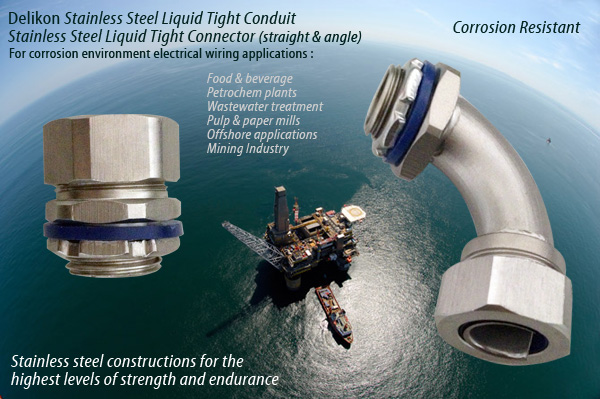

Delikon Stainless Steel Liquid tight Connectors offer corrosion resistance and the strength of stainless steel for the highest levels of endurance. All stainless steel constructions. Male or Female threads: G, PG, NPT, Metric. Straight and angle liquid tight fittings.

DELIKON offers a whole ragne of heavy series Over Braided Flexible Conduit and Fittings for protection of CNC machine cables. Delikon flexible conduit and fittings system provides reliable protection to industry cables.
