Flexible Stainless Steel Conduit ( AT ), Small Bore Flexible Metal Conduit delikon Flexible stainless steel conduit

Small bore Flexible stainless steel conduitFlexible Metal Conduits available in different materials, coverings, and a wide range of sizes

Small bore instrumentation tubing, Flexible metal conduit for optic fibers & control panel wirings
*Stainless steel strip (square locked or interlocked constructions), very flexible *High fatigue life
*Stainless steel for Corrosion Resistant *EMI Shielding *Durable and very long life.
*Most suitable for instrumentation electronics or sensors wirings protections. Vehicle wiring harness.

Delikon Small Bore Stainless Steel Flexible Conduit and Conduit Fittings offer protection for vital Telecommunication, Sensors, Thermal couplers or Laser Equipment cables
  • MADE FROM STAINLESS STEEL STRIPS:
    *ALL Stainless steel construction for corrosion resistant.
     *Durable and long life.
    *Designed for tight-spot installation and where continuous flexing is required

     Delikon small bore flexible metal conduit and fittings for sensor wiring

  • Applications:
    Suitable for use in  Industrial environments. Protection for stainless tubes, sensor cords or electric cords. It is designed to protect sensitive electronic circuits in applications such as sensors, CCTV circuits, electronic instruments and industrial control wirings.
    Liquid-tight connectors  Liquid-tight connectors
    Aluminum Connectors
    Customly Designed Fittings

     In many applications cables have to be additionally protected against mechanical and chemical stress. Delikon flexible conduit systems, used with matching Delikon connectors to form a perfect system connection. The complete Delikon flexible conduit system provides all round protection for cables in indoor and outdoor installations.

       S.S. Capillary Armor Hose

    Related Products:
     >>> Model YF-703
     galvanized steelSquare locked type galvanized steel conduit for general applications

     >>> Model YF-707
     water proof flexible metal conduit
    Galvanized steel conduits with PVC jacket for wet locations

    Custom fittings, end caps manufactured as per your samples or drawings:
    Screw type connectors

Pliable S.S. tube
 Pliable conduit,hoseMost suitable for conveying machineries coolant.

Braided PTFE Hose for carrying industry or Automobile fluids.
 Over braided PTFE hose

Braided Steel Conduit
Over Braided Flexible Steel Conduits

Flexible, sleek, with  IP 67 ratings, Liquid-tight flexible metallic conduit (LFMC) is suitable for use in a variety of industry as well as commercial environments and applications
Liquid-tight flexible metallic conduit

Flexible Galvanized steel conduit with packing for increased strength or more air tightness
>>> Model YF-708
 Flexible Metal Conduit with packing
With  sealing cord



 Heavy Series Flexible Conduit, Heavy Series Fittings For Industry Wiring
Heavy Series Flexible Conduit, Heavy Series Fittings For Industry Wiring
 PVC Coated Interlocked Flexible Metal Conduit for fibre optics
InterLocked PVC Coated Flexible steel Conduit and fittings for machinery electrical wiring, and telecom fibre optics cable protection
Stainless Steel Liquid Tight Connector for corrosive environments
 Stainless Steel Liquid Tight Connector

 Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable
Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable and CNC machine

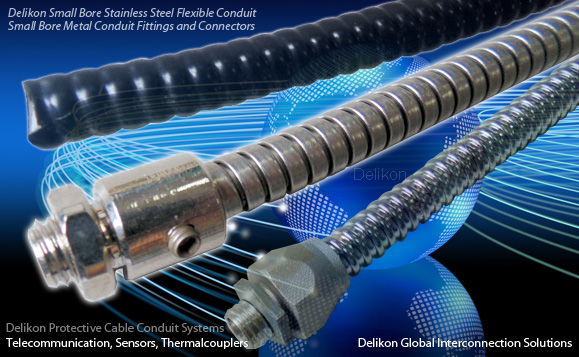

Delikon Small Bore Stainless Steel Flexible Conduit and Conduit Fittings & Connectors offer protection for vital Telecommunication, Sensors, Thermal Couplers or Laser Equipment cables.

Stainless steel flexible conduits
Flexible Stainless Steel Conduit: Type AT is an ultra-flexible, stainless steel conduit designed primarily for OEM applications. A typical application would be armouring in specialty sensing devices, or medical equipment, including fiber-optics.

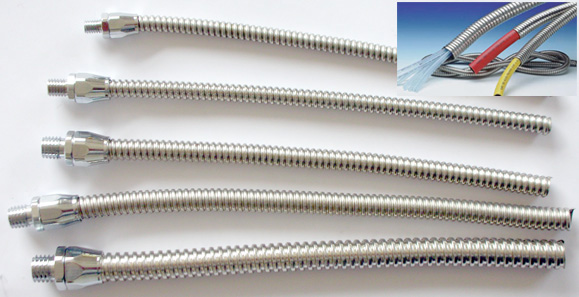

Metal Connectors with threaded end for Small Bore Stainless Steel Flexible Conduit Model:  ATB . This connector is suitable for connection to instrument panel, electrical box, sensor enclosure... Connectors with threaded end for Small Bore Stainless Steel Flexible conduit
SMALL BORE HOSE, Flexible stainless steel conduit for CCTV/roller shutter
Delikon manufactures unique tubing that is relied on in numerous industries. The tubing is produced by helical coiling of a cold-rolled metal strip onto a spindle, with the helical coils being linked with each other by means of a special type of strip profile. Basic materials for the strip are stainless steel or galvanized steel strip. However, other metals are also available. flexible stainless steel conduit  For Industry Automation Cable

Applications: Offshore and Chemical Plants & Optical Fiber and sensors wirings
Protecting inspection equipment's wirings Instrumentation tubing small bore flexible conduit is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.
 Flexible Conduit for Thermal Coupler

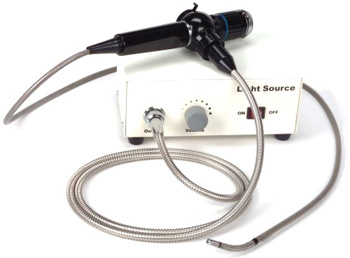

Photo on shown on the left:
Small ID flexible metallic conduit used for Flexible Fiber Optic Scope wirings.

Constructions:  Stainless Steel Stripwound Hose
Instrumentation tubing is made in two configurations, or constructions, commonlyPacking in Reels For Small ID Conduits called SquareLok and InterLok, and is often abbreviated as SL and FI.

Technical Data / specifications:
SquareLok Style (SL)
 SquareLok		 Square lockedSquareLok tubing is produced from a continuous metal strip, and is held in position by locking one leg of one profile over the leg of the adjacent profile.

Delikon High Quality Stainless Steel Stripwound Hose Most Suitable for:
Temperature Measuring Devices, Instrumentation Recording, Instruments, Fiber Optics

Trade
Size

Inside Diameter

Outside Diameter

Weight

 Breaking Load Min

Part Number

1/8”

3.5mm

0.140”

3.5mm

0.200”

5.1mm

0.017lb/ft

0.026kg/m

60lbs.
27kgs

AT-SL-002

5/32”

4mm

0.156”

4.0mm

0.235”

6.0mm

0.030 lb/ft
0.045 Kg/m

145 lbs.

66 Kg

AT-SL-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.033lb/ft

0.049 Kg/m

150 lbs.

68 Kg

AT-SL-003

7/32”

5.5mm

0.218”

5.6mm

0.303”

7.7mm

0.040 lb/ft

0.059 Kg/m

155 lbs.

70 Kg

AT-SL-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.041 lb/ft

0.061 Kg/m

190 lbs.

86 Kg

AT-SL-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.048 lb/ft

0.072 Kg/m

200 lbs.

91 Kg

AT-SL-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.055 lb/ft

0.082 Kg/m

200 lbs.

91 Kg

AT-SL-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.088 lb/ft

0.131 Kg/m

225 lbs.

102 Kg

AT-SL-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.106 lb/ft

0.157 Kg/m

250 lbs.

113 Kg

AT-SL-008

Packed    PACKING is available for large quantity orders.
Part No.: AT-SL-PACKED- (packing type)
Packing Type Pressure Range  Vacuum Rating Temperature
Cotton    Up to 15 PSI Up to 15" Mercury 300 F
Stainless/Copper Wire    Up to 15 PSI Up to 15" Mercury 1500 F
Elastomeric    Up to 20 PSI Up to 20" Mercury 180 F

Delikon Small Bore Flexible Stainless Steel Conduit
For Protection of Thermal Coupler, Laser Instrument, or Fibre Optics Cables
Fully InterLok Style (FI)
 Fully InterLok 		 Interlocked

InterLok metal strip and the edges of the strip are completely interlocked with each other.  This offers increased crush protection, and higher axial strength.
Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

5/32”

4mm

0.174”

4.4mm

0.252”

6.4mm

0.037 lb/ft
0.055 Kg/m

180 lbs.

78 Kg

AT-FI-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.041 lb/ft

0.060 Kg/m

190 lbs.

86 Kg

AT-FI-003

7/32”

5.5mm

0.218”

5.5mm

0.303”

7.7mm

0.045 lb/ft

0.067 Kg/m

200 lbs.

91 Kg

AT-FI-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.046 lb/ft

0.068 Kg/m

250 lbs.

113 Kg

AT-FI-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.054 lb/ft

0.081 Kg/m

260 lbs.

118 Kg

AT-FI-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.062 lb/ft

0.092 Kg/m

260 lbs.

118 Kg

AT-FI-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.099 lb/ft

0.147 Kg/m

292 lbs.

132 Kg

AT-FI-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.119 lb/ft

0.176 Kg/m

325 lbs.

146 Kg

AT-FI-008

* Maximum size we could produce= 6"(about 150mm). For bigger sizes or custom sizes order, please send us your detailed requirement.



OD tolerance is +/- 0.015 inches    ID tolerance is +/- 0.020 inches

Download the catalog page for DELIKON AT Series Small Bore Stainless Steel Flexible Conduit
Download the catalog page for DELIKON AT Series Small Bore Stainless Steel Flexible Conduit in PDF File format.


Flexible Conduits & Accessories For Vehicle Wiring HarnessStainless Flexible Protection conduits with PVC Sheathing Or Metal Wire Braiding
for use in hazardous Locations, industrial environments and Vehicle wiring harness.
For Large Quantity Order, it is possible to Vacuum-Jacket or Extrude a PVC covering onto the
above AT-SL (SquareLok Type) conduits for water proof applications.  Please also refer to: Flexible Metal Conduit Systems

Corrugated surfaceVacuum jacketed



 Smooth surfaceextruded PVC coating,smoother surface
TYPE: AT-SL-JACKETED
The PVC covering is applied onto the metal surface with a Vacuum process. The finished surface will have a spiral corrugated pattern. It is most suitable for tight-spot installation and where a certain water tightness is required flexible stainless steel conduit		   METALLIC LIQUID-TUFF CONDUITSTYPE: AT-SL-EXTRUDED
The PVC covering is extruded onto the conduit metal surface,
thus producing a smoother finished surface. when used with liquid-tight fittings it offers a higher degree of liquid tightness than the vacuum jacketed type.
Insterted into a plastic SLEEVEMetal conduit insterted into a plastic sleeving   Metal wire over-braided  Stainless Steel Conduit, Steel OverbraidBraided Small ID Metal Conduit
TYPE: AT-SL-SLEEVED
A short length of the AT-SL tubing is directly inserted into a thermoplastic sleeve. A very smooth outer surface and a very uniform thickness of sleeving is ensured. For cut to length OEM orders.		   TYPE: AT-SL-BRAIDED     EMI/RFI Shielding Flexible Conduits
 High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible metal tubing for optimum protection. It provides increased abrasion resistant, improved EMI screening, and resists hot metal splashes.

PVC coverings with various colors for flexible stainless steel conduit

   Extruded Elastomer CoveredExtruded Elastomer Covered Flexible Metal Conduit is also available for high end application. (For example, Neoprene synthetic rubber, its chemical inertness makes it well suited for chemical industrial applications.). The Elastomer is extruded onto the corrugated metal surface, and then cured in a vulcanization machine. This vulcanization strengthened rubber covering is thus more heat and abrasion resistant. conduit
Soft Polyvinyl Chloride(PVC) coverings are availble in different colors: Black(standard), Grey, Red, Green...
Corrosion Resistant Stainless Steel Liquid Tight Conduit & Stainless Steel Liquid Tight Connector
Most suitable for corrosion environments applications, such as chemical plant equipment wirings. Delikon Stainless steel liquid tight conduit and stainless steel liquid tight fittings provide reliable protection for pharmaceutical industry and hospital electrical power and data cables.		 Stainless steel liquid tight conduit for Chemical Industry instrument panel wiring
Delikon liquid tight stainless steel conduit and liquid tight stainless steel connector protect Oil and Gas Industry Automation and Digitization cablesElectrical flexible conduit
Delikon flexible conduit systems protect Oil and Gas Industry Automation and Digitization cables
There is considerable demand for automation in oil and gas industry. Machinery will contain sensors that gather data, and they will then be able to share this data. This will lead to greater demands for reliable cable conduit systems that can be used to protect cables in a wide range of operating conditions. Delikon liquid tight stainless steel conduit and liquid tight stainless steel connector offer mechanical protection as well as humidity protection to cables of Outdoor Panel, temperature Instrumentation and Sensors. The aim of Delikon flexible conduit and fittings system is to make the industry as safe and reliable as possible.

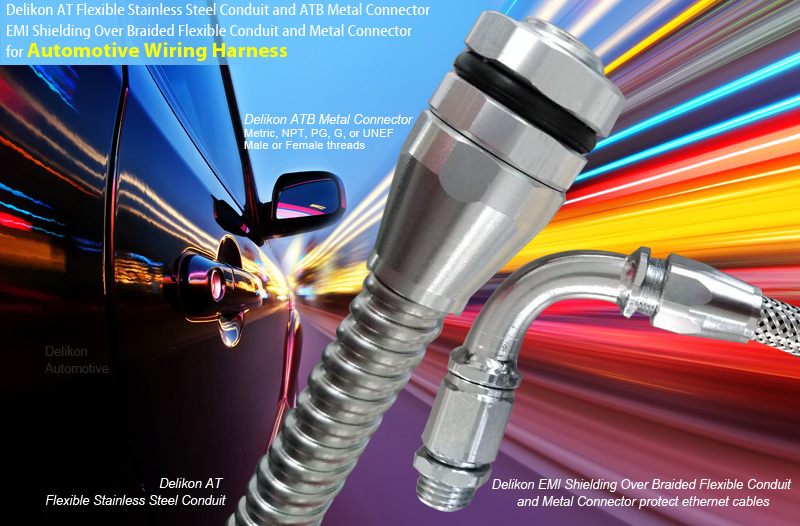

Delikon AT Flexible Stainless Steel Conduit and ATB Metal Connector, EMI Shielding Over Braided Flexible Conduit and Metal Connector for Automotive Wiring Harness. The ignition, power delivery and the overall performance of the vehicle depends on the wiring harness, while the Delikon AT Flexible Stainless Steel Conduit and ATB Metal Connector with Metric, NPT, PG, G, or UNEF Male or Female threads, EMI Shielding Over Braided Flexible Conduit and Heavy Series Connector provide reliable mechanical protection as well as emi shielding to the Automotive wires.
