Small Bore Stainless Steel Flexible Conduit Armor,Over Braided Flexible Stainless Steel Conduit

Small Bore Stainless Steel Flexible Conduit ( AT ) delikon Flexible stainless steel conduit Over Braided Flexible Stainless Steel Conduit for optimum cable protection

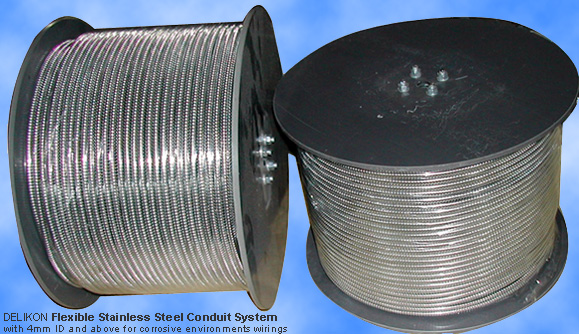

Small bore instrumentation tubing, Flexible metal conduit for optic fibers & control panel wirings Stainless Steel Flexible Conduit System is particularly suitable for corrosive environments wirings, and the flexible design means it is ideal for constantly vibrating or flexing applications. The Delikon small bore Stainless Steel Conduit System further enhances the metallic flexible conduit ranges with the benefits of stainless steel. They are most suitable for protecting fibre optics cables.

MADE FROM STAINLESS STEEL STRIPS:
*ALL Stainless steel construction for corrosion resistant.
*Durable and long life.
*Designed for tight-spot installation and where continuous flexing is required

Applications:
Suitable for use in Industrial environments. Protection for stainless tubes, sensor cords or electric cords. It is designed to protect sensitive electronic circuits in applications such as sensors, CCTV circuits, electronic instruments and industrial control wirings.

Aluminum Connectors
Customly Designed

Related Products:
>>> Model YF-703

Square locked type galvanized steel conduit for general applications

>>> Model YF-707

Galvanized steel conduits with PVC jacket for wet locations

Custom fittings, end caps manufactured as per your samples or drawings:

Pliable S.S. tube
Most suitable for conveying machineries coolant.

Braided PTFE Hose for carrying industry or Automobile fluids.

Braided Steel Conduit

Flexible, sleek, with IP 67 ratings, Liquid-tight flexible metallic conduit (LFMC) is suitable for use in a variety of industry as well as commercial environments and applications

Flexible Galvanized steel conduit with packing for increased strength or more air tightness

>>> Model YF-708
Flexible Metal Conduit with sealing cord

Over Braided Flexible Metal Conduit or protection of Offshore and Petrochemical industry wirings.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and fittings protect FLNG facility and LNG facility automation cables

Flexible Stainless Steel Conduit: Type AT is an ultra-flexible, stainless steel conduit designed primarily for OEM applications. A typical application would be armouring in specialty sensing devices, or medical equipment, including fiber-optics.

SMALL BORE HOSE, Flexible stainless steel conduit for CCTV/roller shutter
Delikon manufactures unique tubing that is relied on in numerous industries. The tubing is produced by helical coiling of a cold-rolled metal strip onto a spindle, with the helical coils being linked with each other by means of a special type of strip profile. Basic materials for the strip are stainless steel or galvanized steel strip. However, other metals are also available. flexible stainless steel conduit

Applications: Offshore and Chemical Plants & Optical Fiber and sensors wirings

Protecting inspection equipment's wirings

Instrumentation tubing is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.

Photo on shown on the left:
Small ID flexible metallic conduit used for Flexible Fiber Optic Scope wirings.

Constructions:
Instrumentation tubing is made in two configurations, or constructions, commonly called SquareLok and InterLok, and is often abbreviated as SL and FI.

Technical Data / specifications:

SquareLok Style (SL)
SquareLok tubing is produced from a continuous metal strip, and is held in position by locking one leg of one profile over the leg of the adjacent profile.

Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

1/8”

3.5mm

0.140”

3.5mm

0.200”

5.1mm

0.017lb/ft

0.026kg/m

60lbs.
27kgs

AT-SL-002

5/32”

4mm

0.156”

4.0mm

0.235”

6.0mm

0.030 lb/ft
0.045 Kg/m

145 lbs.

66 Kg

AT-SL-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.033lb/ft

0.049 Kg/m

150 lbs.

68 Kg

AT-SL-003

7/32”

5.5mm

0.218”

5.6mm

0.303”

7.7mm

0.040 lb/ft

0.059 Kg/m

155 lbs.

70 Kg

AT-SL-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.041 lb/ft

0.061 Kg/m

190 lbs.

86 Kg

AT-SL-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.048 lb/ft

0.072 Kg/m

200 lbs.

91 Kg

AT-SL-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.055 lb/ft

0.082 Kg/m

200 lbs.

91 Kg

AT-SL-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.088 lb/ft

0.131 Kg/m

225 lbs.

102 Kg

AT-SL-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.106 lb/ft

0.157 Kg/m

250 lbs.

113 Kg

AT-SL-008

PACKING is available for large quantity orders. Part No.: AT-SL-PACKED- (packing type)
Packing Type	Pressure Range	Vacuum Rating	Temperature
Cotton	Up to 15 PSI	Up to 15" Mercury	300 F
Stainless/Copper Wire	Up to 15 PSI	Up to 15" Mercury	1500 F
Elastomeric	Up to 20 PSI	Up to 20" Mercury	180 F

Fully InterLok Style (FI)

InterLok metal strip and the edges of the strip are completely interlocked with each other. This offers increased crush protection, and higher axial strength.

Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

5/32”

4mm

0.174”

4.4mm

0.252”

6.4mm

0.037 lb/ft
0.055 Kg/m

180 lbs.

78 Kg

AT-FI-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.041 lb/ft

0.060 Kg/m

190 lbs.

86 Kg

AT-FI-003

7/32”

5.5mm

0.218”

5.5mm

0.303”

7.7mm

0.045 lb/ft

0.067 Kg/m

200 lbs.

91 Kg

AT-FI-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.046 lb/ft

0.068 Kg/m

250 lbs.

113 Kg

AT-FI-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.054 lb/ft

0.081 Kg/m

260 lbs.

118 Kg

AT-FI-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.062 lb/ft

0.092 Kg/m

260 lbs.

118 Kg

AT-FI-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.099 lb/ft

0.147 Kg/m

292 lbs.

132 Kg

AT-FI-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.119 lb/ft

0.176 Kg/m

325 lbs.

146 Kg

AT-FI-008

* Maximum size we could produce= 6"(about 150mm). For bigger sizes or custom sizes order, please send us your detailed requirement.

OD tolerance is +/- 0.015 inches ID tolerance is +/- 0.020 inches

Stainless Steel Liquid Tight Conduit and Stainless Steel Connector

Download the catalog page for Delikon AT-Braided Series Over Braided Small Bore Stainless Steel Flexible Conduit in PDF File format.


Stainless Flexible Protection conduits with PVC Sheathing Or Metal Wire Braiding for use in hazardous Locations, industrial environments and Vehicle wiring harness.
For Large Quantity Order, it is possible to Vacuum-Jacket or Extrude a PVC covering onto the above AT-SL (SquareLok Type) conduits for water proof applications. Please also refer to: Flexible Metal Conduit Systems

TYPE: AT-SL-JACKETED The PVC covering is applied onto the metal surface with a Vacuum process. The finished surface will have a spiral corrugated pattern. It is most suitable for tight-spot installation and where a certain water tightness is required flexible stainless steel conduit		TYPE: AT-SL-EXTRUDED The PVC covering is extruded onto the metal surface, thus producing a smoother finished surface. when used with liquid-tight fittings it offers a higher degree of liquid tightness than the vacuum jacketed type.
		Over Braided Stainless Steel Flexible Conduit
TYPE: AT-SL-SLEEVED A short length of the AT-SL tubing is directly inserted into a thermoplastic sleeve. A very smooth outer surface and a very uniform thickness of sleeving is ensured. For cut to length OEM orders.		TYPE: AT-SL-BRAIDED EMI/RFI Shielding Flexible Conduits High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible metal tubing for optimum protection. Over Braided Flexible Stainless Steel Conduit provides increased abrasion & corrosion resistant, improved EMI screening, and resists hot metal splashes.
Delikon Flexible Conduit System For Complete CCTV Cable Protection Solutions DELIKON's whole range of flexible conduit systems provides dedicated protection to vulnerable CCTV systems, not only from the elements, but also from the threat of vandalism. The wide range of DELIKON metallic and non-metallic flexible conduit systems is specifically designed to provide ingress protection to the vulnerable umbilical cabling used on CCTV cameras and networks. The flexible systems are ideal for both static and rotating cameras. For Industry Automation

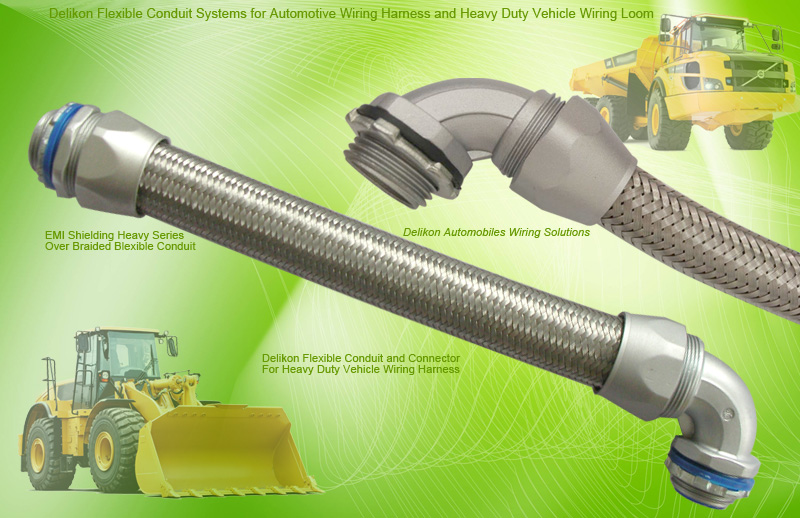

Delikon Flexible Conduit Systems for Automotive Wiring Harness and Heavy Duty Vehicle Wiring Loom Delikon manufactures the industry best OEM and universal flexible cable conduit wiring systems for Automobiles. Wiring Harness handles the complete current flow across all the components of a vehicle including its lights, wipers, electrical devices and other electronic components. Increase in demand for high end electronic and safety features in vehicles, along with cost reduction and enhanced reliability, is leading to rise in demand for automotive wiring harnesses globally. The Delikon wiring harness flexible conduit system facilitates safe, reliable, compact and simple functioning of the electronic devices installed in the automobile. Delikon offers a wide variety of flexible conduit and fittings to help you with your Automotive Wiring Harness project, like coated flexible metal conduit, liquid tight conduit, flexible stainless steel conduit, EMI Shielding heavy series over braided flexible conduit, liquid tight connector, and heavy series conduit fittings.
Overbraided flexible metal conduit systems are ideal for use in high temperature industry applications with sparks, weld slag or hot swarf. Over braided flexible metal conduit are also suitable for screening electromagnetic radiation.
Electric Flexible Conduit Systems for petrochemical and hi-spec applications Delikon manufactures a range of petrochemical, high-specification electrical flexible conduit systems covering many specialist applications, for industries as diverse as healthcare, offshore, mining and food and drink. Flexible Conduits made by Delikon is specified for plant rooms, machinery and machine tools, security systems, marine and offshore installations, railways, oil and gas installations, hospitals and more.
Electromagnetic shielding over Braided Flexible Conduit for industry control cable

Delikon Heavy Series Over Braided Flexible Conduit and Heavy Sheath Flexible Conduit Fittings protect CNC EDM Machine Data and Power Cable and Fluid Line. Delikon Over Braided Flexible Conduit and Fittings provide reliable protection to cables. Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter for Servo Motor Cable protection

Delikon Liquid Tight Conduit and Conduit Fittings

Heavy Series

Over Braided Interlocked Liquid Tight Conduit and Fittings

Delikon Heavy Series Over Braided Flexible Conduit and Conduit Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing. Our heavy series over braided flexible conduit systems are superior in their ability to withstand heat, moisture and molten material splash and are highly resistant to mechanical and physical abuse. The overall stainless steel braid provides slag protection. Heavy Series Flexible Sheath

Heavy Series Flexible Sheath for steel mills,coke plants and glass manufacturing wiring.Delikon Heavy Series Over Braided Flexible Conduit and Fittings

Delikon steel industry automation EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Conduit fittings
