Flexible Metallic Conduit   ( YF-703 ) flexible metal conduit flexible conduit

Delikon All metal flexible conduit and conduit fittings for Plenum cable protection

Flexible steel conduit has many universal wiring applications. flexible metal conduit conduit
This conduit can withstand substantial impact and crushing forces. flexible metal conduit
*Flexible metal conduit with square locked or interlocked construction of galvanized steel strip
*Good mechanical protection of wirings *All metallic constructions, inherent low fire hazard

Flexible Metallic Conduit

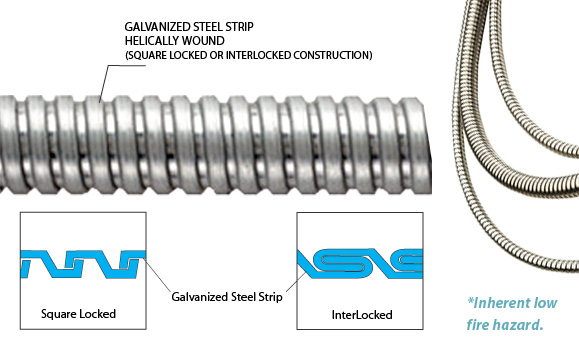

  • Constructed by square locking or interlocking galvanized steel strip:

    * Flexible metal conduits offer good mechanical protection to wiring in a variety of O.E.M. applications.
    *With excellent flexibility characteristics with the square locked construction. The interlocked construction provides increased mechanical strength.
    *All metallic constructions, inherent low fire hazard

  • Applications:
    Industrial wirings, appliances, automotive wire & cable sleeving, machineries, electric wire flexible conduits

    It can also be used as a protective cover in industrial environments for hydraulic lines, brake lines, power steering assemblies, and wiring harness etc.

Stainless steel constructions
Stainless Steel SMALL BORE

Over braided flexible metal conduit for steel mill wirings
Over Braided flexible metal conduit for steel mill wirings

 Connectors with PG or Metric threadsPG & Metric threads

PG, Metric, NPT liquid tight connector for machine wiring
Flexible Galvanized Steel Conduit is suitable for concealed, exposed, or approved raceways. The flexible conduit is manufactured with a spiral wound strip of corrosion and rust resistant, electrogalvanized steel. The conduit features a smooth metal interior for easy wiring pulling. The flexible steel conduit is wire temperature rated, and has superior crush-proof qualities. Delikon All Metal flexible conduit and conduit fittings are suitable for Plenum cable protection.
SQUARE-LOCKED FLEXIBLE METAL CONDUIT Square-locked
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70301-SQ - 7.8 8.2 10.8 11.2 25 100
YF-70302-SQ 1/4" 9.7 10.2 13.5 14.0 25 100
YF-70303-SQ 3/8" 12.3 12.8 15.3 15.8 35 50
YF-70304-SQ 1/2" 15.8 16.3 18.7 19.3 40 50
YF-70306-SQ 3/4" 20.8 21.3 23.7 24.2 45 50
YF-70310-SQ 1" 26.4 27.1 29.2 29.8 55 50
YF-70312-SQ 1-1/4" 35.0 35.8 37.7 38.3 60 30
YF-70314-SQ 1-1/2" 40.1 40.6 43.4 44.0 90 25
YF-70320-SQ 2" 51.3 51.9 54.8 55.4 110 20
YF-70324-SQ 2-1/2" 62.9 63.6 66.5 67.2 130 10
YF-70330-SQ 3" 77.9 78.7 81.6 82.4 155 10
YF-70340-SQ 4" 101.6 102.6 105.5 106.5 200 10
YF-70350-SQ 5" 125.0 127.0 135.0 137.5 250 5
YF-70360-SQ 6" 150.0 153.0 160.0 163.0 350 5
INTERLOCKED FLEXIBLE METAL CONDUIT (HIGH TENSILE STRENGTH) Interlocked
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70301-IN - 7.8 8.2 10.8 11.2 25 100
YF-70302-IN 1/4" 9.7 10.2 13.5 14.0 25 100
YF-70303-IN 3/8" 12.3 12.8 15.3 15.8 35 50
YF-70304-IN 1/2" 15.8 16.3 18.7 19.3 40 50
YF-70306-IN 3/4" 20.8 21.3 23.7 24.2 45 50
YF-70310-IN 1" 26.4 27.1 29.2 29.8 55 50
YF-70312-IN 1-1/4" 35.0 35.8 37.7 38.3 60 30
YF-70314-IN 1-1/2" 40.1 40.6 43.4 44.0 90 25
YF-70320-IN 2" 51.3 51.9 54.8 55.4 110 20
YF-70324-IN 2-1/2" 62.9 63.6 66.5 67.2 130 10
YF-70330-IN 3" 77.9 78.7 81.6 82.4 155 10
YF-70340-IN 4" 101.6 102.6 105.5 106.5 200 10
YF-70350-IN 5" 125.0 127.0 135.0 137.5 250 5
YF-70360-IN 6" 150.0 153.0 160.0 163.0 350 5
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible metal conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.                        Also Refer To: Braided Flexible Metal Conduit, Water Proof

Over Braided Flexible Conduit & Fittings For Industry Automation Cable Management
In industry automation environment, Delikon Over Braided Flexible Conduit & Fittings provide very reliable performance; protection for abrasion and hot metal splash; flexibility; first-class mechanical strength and provide antistatic properties & EMC shielding for critical data & power cables.
Delikon Liquid Tight Conduit has been designed to excel in many applications

Delikon big size Metal Liquid Tight Conduit is suitable for industry and commercial liquid tight applications. Delikon Liquid Tight Conduit has been designed to excel in many applications including but not limited to machine and plant construction, CNC machines, motor and railroad power & signal systems. Full range of liquid tight connectors are available.
Over Braided Flexible Steel Conduits for heavy industryHigh Temperature Wrings Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
YABS, All metal connector for high temperature Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw) Squeeze Type BX-Flex Connector,straight
Y Y Y Y Y Y Y Y Y Y Y Y Y

 Y
