Water Proof Braided Flexible Metallic Conduit ( YF-704 )

Delikon Heavy Series Flexible Sheath Over Braided Flexible Conduit and Fittings for steel mill power and data cable protection.Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Conduit Connector protect Continuous Casting Machine electrical power and automation cables. Delikon heavy series over braided flexible conduit system is typically used for Vertical casters and Curved casters control cables, motor cables and sensor cables protection.

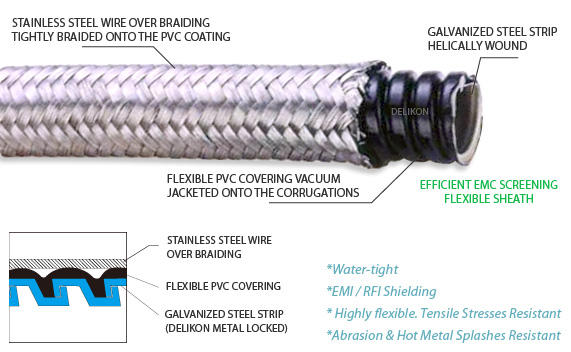

MADE FROM TYPE YF-707 PVC JACKETED CONDUIT WITH WIRE OVER-BRAID:
*Wire over-braiding provides more abrasion resistance and efficient EMI/RFI shielding.
*Explosion proof.
*Durable and long life.
*Inner core made from galvanized steel strip.
*Delikon Metal Lock construction for more dynamic flexibility.
*Resists hot metal splashes and tensile stresses
*PVC covering provides water & moisture protections for the electrical conductors

Over-braided flexible conduit system with connectors

Applications:
Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening and water tightness are required. Most suitable for petrochemical and steel mills electric wirings management.

Related Products:

For higher IP rating:
>>> Model YF-705

Braided Liquid tight Flexible Shielding Conduit

Water proof flexible metallic conduits without wire over-braid. (For general wirings)
>>> Model YF-707

Vacuum jacketed steel flexible conduit (VJC)

All metallic over braided flexible conduit for EMI shielding or abrasion resistance.
>>> Model SM70001

Flexible metal conduit for heavy mechanical stress

EMI Shielding Heavy Series Over Braided Flexible Metal Conduit and Fittings for steel mill wiring harness

Liquid Tight Conduit
>>> Model YF-706

Liquid tight conduit and liquid tight connector

Heavy series Over Braided Flexible Conduit and Conduit Fittings protect CNC machine cables

Delikon Heavy Series Over Braided Flexible Conduit and Fittings for steel industry automation cabling solution

Delikon Heavy Series Over Braided Flexible Conduit and Conduit Fittings for steel mills, coke plants and glass manufacturing cables

Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable and CNC machine
Delikon produces oil resistant stainless steel over braided flexible rubber conduit and conduit fittings specifically designed for oil and coolant contaminated environments typically associated with Machine Tool applications.

Delikon Heavy Series Over Braided Flexible Conduit flexible sheath Fittings for bank vault cable protection
Delikon industry control heavy series over braided flexible conduit and connector for automation and process control wiring applications
Flexible conduit system for industry control and robot.
Nylon conduit system protects sensitive cabling

DELIKON has introduced a range of flexible ocver braided nylon corrugated conduit & metal fittings with EMC screening capacity.

Small ID Metal Hose >>>

Small bore flexible conduit
for automobile wiring harness
Delikon Stainless Steel Liquid Tight Connector and Stainless Steel Liquid Tight Conduit for harsh environments similar to those found in water and wastewater facilities.

Delikon Stainless Steel Liquid Tight Fittings and Stainless Steel Liquid Tight Conduit for food processing equipment cable protection

Heavy Series Over Braided Flexible Conduit and Heavy Series Flexible Metal Fittings For industry automation cable protection

Delikon Heavy Series Flexible Sheath Over Braided Flexible Conduit and Fittings
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Conduit Connector protect Continuous Casting Machine electrical power and automation cables. Delikon heavy series over braided flexible conduit system is typically used for Vertical casters and Curved casters control cables, motor cables and sensor cables protection. The Delikon Heavy Series Over Braided Flexible Conduit and Heavy Series Conduit Connector bring increased safety, improved data transmission, and reduced machine down times due to cable failures.

Delikon Heavy Series Over Braided Flexible Conduit with Military Circular Connector Backshells, Delikon Conduit Adapter Backshells are also commonly used to protect Computer Numerical Control CNC machines, milling machines, lathes, and grinders cables. We offer a flexible service to enable a conduit system to be designed and built to the requirements of our customers.

Over Braided Water Proof Flexible Metal Conduit,EMI shielding,water proof,resists hot metal splashes


	Clean data transmission in a noisy environment is an ever increasing requirement on today's crowded factory floors. Braided flexible steel conduit systems provide excellent EMI and RFI shielding, as well as mechanical protection, resulting in improved data transmission for factory automations.

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min Bending Radius (mm)	Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Min Bending Radius (mm)	Meter/Coil
YF-70400	5mm	4.8	5.3	9.3	9.9	40	100
YF-70401	8mm	8.0	8.4	13.0	13.4	50	100
YF-70402	1/4"	9.7	10.2	15.4	15.7	60	100
YF-70403	3/8"	12.3	12.8	18.5	19.0	70	50
YF-70404	1/2"	15.7	16.3	21.8	22.3	90	50
YF-70406	3/4"	20.7	21.2	27.2	27.7	110	50
YF-70410	1"	26.2	26.8	33.7	34.4	150	50
YF-70412	1-1/4"	34.7	35.4	42.5	43.2	175	30
YF-70414	1-1/2"	40.0	40.6	48.4	49.3	200	25
YF-70420	2"	51.3	51.9	60.4	61.3	230	20
YF-70424	2-1/2"	62.9	63.6	73.1	74.0	250	10
YF-70430	3"	77.9	78.7	88.8	89.9	300	10
YF-70440	4"	101.6	102.6	114.2	115.3	500	10
YF-70450	5"	125.0	127.0	141.0	144.0	580	5
YF-70460	6"	150.0	153.0	166.0	169.0	650	5

Over braided pvc jacketed flexible metal conduit provides high resistance against wear. Resistant to most types of oils and greases, this flexible sheath is extremely flexible and have excellent levels of mechanical resistance. Over braided flexible conduit also offers a good protection from electromagnetic interferences in a large wave band.

Delikon flexible conduit and fittings provide added defense to marine wire or boat cable against the elements.

The marine environment is a hostile one for electrical wire. Wire used on board a marine vessel will potentially be exposed to numerous obstacles, such as water, sunlight, heat and other outside hindrances. Marine wire needs to behave consistently in order to perform properly. Delikon flexible conduit and fittings provide added defense to marine wire or boat cable against the elements.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect FLNG and LNG facility automation and process control instrumentation cables.

Download the catalog page for DELIKON YF-704 Over Braided Water Proof Flexible Metal Conduit

Download the catalog page for DELIKON YF-704 Over Braided PVC Jacketed Flexible Metal Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.

Typical Applications For Over Braided Flexible Metallic Conduit and Fittings :

For Heavy
Industry
Wirings

Mining Industry

Over braided flexible metal conduit for industry welding line wirings

1) Electromagnetic Interference (EMI) considerations, EMC screening:
         *computers rooms *telecommunications *control systems *PLC circuit
2) Abrasion resistance considerations:
         *railway rolling stock *heavy duty industrial applications
3) Hot metal splashes resistance considerations:
         *steel mills *petrochemical plants, Heavy Industrial wirings
4) Mechanical integrity:
         *security/CCTV *anti-vandal applications *robotics *Ships & Trains

*EMI/RFI shielding *Water-tight *Resists hot metal splashes *Abrasion Resistant

On the road to Industry 4.0 in CNC technology with Delikon Cable Protection Heavy Series Flexible Conduit systems
Industry corporations are facing deep-rooted changes in the world of manufacturing. In the field of CNC production in general, Delikon has been heavily involved for many years already in the area of flexible conduit systems for machine cable protection, as well as the integration our flexible conduit and fittings into factory IT systems cables management. Our aim is to drive this process of integration forward to ensure that the field of machine tool cable protection is also prepared to embrace Industry 4.0

Delikon will be demonstrating how productivity, flexibility and safety can be increased in CNC production with an array of flexible conduits and fittings additions to its Heavy Series Over Braided Flexible Conduit and Fittings portfolio.

Delikon Heavy Series Over Braided Flexible Conduit and Connector with UNEF Male or Female Threads

With its heavy series over braided flexible conduit and fittings family, Delikon offers an integral portfolio of cable protection solutions for simple machine tools through standardized heavy series over braided flexible conduit system to modular premium heavy series conduit fittings solutions, complete with EMI Shielding solutions for the control and drive cables.

The Heavy Series Over Braided Flexible Conduit and Fittings portfolio is additionally playing an increasingly important role in preparing the ground of cable protection for Industry 4.0 in the field of CNC production, also for cable management in the Integrated Drive System IDS.

Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 power, signal and data cables

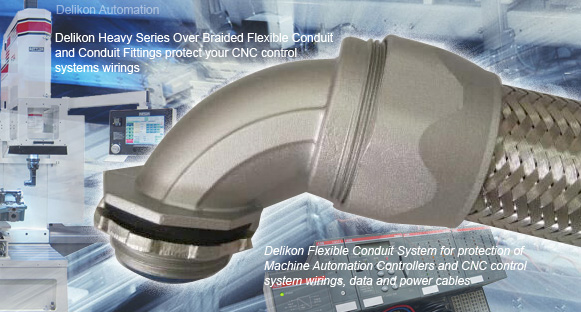

Delikon Heavy Series Over Braided Flexible Conduit and Conduit Fittings protect your CNC control systems wirings, Lathes and Turning Centers wirings, for CNC retrofit upgrade, Panel building and re-wiring, machine tool repair and rebuild projects. Delikon Auotation

Delikon is the worlds leading supplier of innovative electrical flexible conduits and fittings system for Machine Automation wirings protection. Ruggedly designed, engineered, and constructed, Delikon Heavy Series Over Braided Flexible Conduit and Conduit Fittings offer cable management solutions for harsh-duty manufacturing environments such as metal industry, automotive, food and beverage, material handling and commercial vehicles.

Heavy Series Conduit Fittings for heavy flexible sheath,heavy series over braided flexible conduit

Delikon heavy series flexible sheath flexible conduit and heavy series fittings are ideal for protecting crucial communication and power cables in Banks, air ports, and train stations. Heavy Series Conduit Fittings provide positive clamping on both the braiding and the inner conduit for heavy duty industry wiring applications, minimizing EMI.

Liquid Tight Conduit
for commercial and industry

*All sizes and dimensions listed above are subject to manufacturing tolerances. braided metallic conduit
*Standard Packaging: PVC woven sheet wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval. flexible conduit Also Refer To: Braided Corrugated Nylon Conduit

Delikon TRIPLE Layers SS Wires Over Braided Flexible Stainless Steel Conduit for burning equipment power and data cable protection
Delikon Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit system provides protection for combustion equipment power and data cable: igniters, flame detectors, Burner Management Systems(BMS), and Combustion Control System (CCS) cables. This heavy series over braided flexible stainless steel conduit is a reliable protection sheath for flame detector flexible fiber optic assembly. For safe ignition and control of industrial burners, Delikon heavy series over braided flexible conduit systems also offer protection against electro-magnetic interference of control cables.

Delikon Heavy Series Over Braided Flexible Conduit and Fittings offer protection and EMI shielding for chemical industry sensors, transmitters, process instrumentation, communication and variable speed drive unit cables
In the highly competitive market environment of the chemical industry, only one thing counts: competitiveness. As a reliable partner of the chemical industry, Delikon offers flexible cable protection solutions that enable you to make best use of your automation advantages. Processes in the chemical industry have to meet the most stringent requirements. With our well-founded know-how, we provide high-quality, reliable Heavy Series Over Braided Flexible Conduit and Fittings system which ensures that sensors, transmitters, process instrumentation and ariable speed drive unit cables are efficiently protected.

Delikon Heavy Series Conduit Connector

The proliferation of electronic devices in the chemical industry has caused electromagnetic i

Delikon Heavy Series Over Braided Flexible Conduit and Fittings offer a number of benefits that make them the ideal choice for the harsh, demanding applications in chemical industry

nterference and radio frequency interference to become important concerns. Delikon Heavy Series Over Braided Flexible Conduit and Fittings provide cost effective electromagnetic interference shielding solutions for the electronic devices cables. As a global market leader in the field of automation cable management, we have the right answers to meet the challenges of the process industry.

Delikon Flexible Conduit and Fittings for Automotive Wiring Harness and Heavy Duty Vehicle Wiring Loom

Delikon EMI Shielding Over Braided Flexible Conduit and Fittings protect Industrial Automation Cables
With industry leading and diverse product offering of flexible conduit system, Delikon is positioned to meet the challenges faced by today industrial automation customers, including automotive and metal industry, plants and facilities management, industrial equipment manufacturers, health care and medical device manufacturers, and maintenance and repair operations. Through innovative design and engineering expertise, Delikon provides you with EMI shielding Over Braided Flexible Conduit and Fittings protecting Instrumentation and Control Cables, Industrial Communications Cables, Industrial Ethernet Cables, and VFD Cables for Drives. Delikon EMI shielding Over Braided Flexible Conduit and Fittings are designed to deliver protection of your ongoing productivity in the harshest of industrial environments.

Delikon EMI Shielding Over Braided Flexible Conduit and Fittings protect Industrial Automation Cables.Delikon provides you with EMI shielding Over Braided Flexible Conduit and Fittings protecting Instrumentation and Control Cables, Industrial Communications Cables, Industrial Ethernet Cables, and VFD Cables for Drives.

	Water Proof Flexible Metallic Conduit, Metal Wire Braided ( YF-704 ) Heavy Series
	typically used for steel mills machineries, robotics and petrochemical industrial cable protection Galvanized steel helically wound, square locked type construction braided metallic conduit with PVC coating and wire over-braid. Metal braiding provides increased abrasion resistance. 1/4"~6" trade size Water-tight EMI/RFI shielding *Resists hot metal splashes
