Over Braided InterLocked Metal Liquid Tight Conduit ( SM-701 ) Heavy Series

Heavy series flexible sheath fittings
Heavy Series Fittings

High Strength InterLocked Over Braided Liquid Tight Conduit is most suitable for industry machines wirings demanding high mechanical strength with high abrasion and hot metal swarfs resistance.

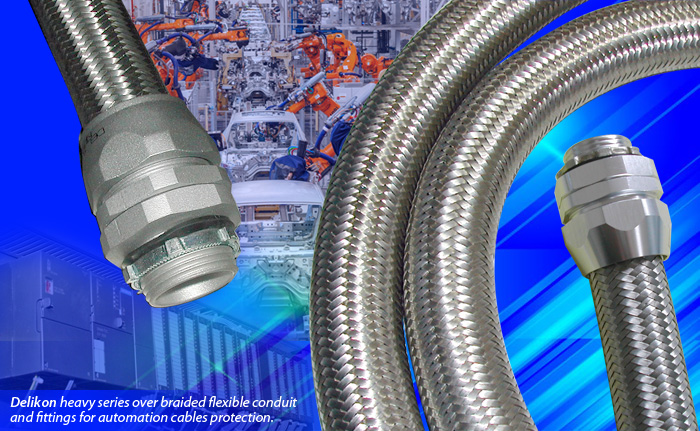

Delikon Automation Flexible Conduit and FittingsDelikon EMI shielding Heavy Series Over Braided Interlocked Liquid Tight Metal Conduit protects industry automation and control cables.

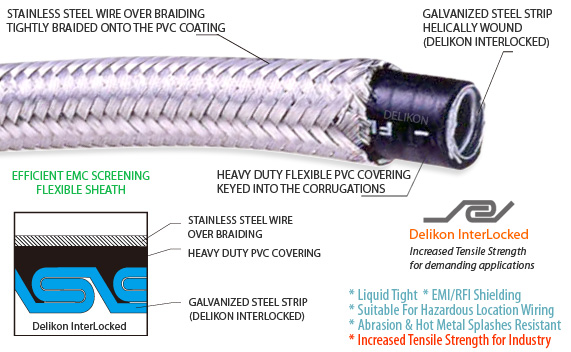

*Galvanized steel helically wound (interlocked) with PVC coating and wire over-braid.
*Trade size: 3/8"~6" (Interlocked profile for increased tensile strength.) *Liquid-tight
*EMI shielding *Explosion proof (for use in Hazardous Location) *High Tensile strength

Delikon, experts in the manufacture of heavy series over braided flexible conduit and fittings for industry automation power and data cables protection. Our flexible conduit systems offer reliable cable protection solutions for PLC, sensors, machining centers, industry robots and other demanding industrial applications.

Delikon, experts in the manufacture of heavy series over braided flexible conduit and fittings for industry automation power and data cables protection. Our flexible conduit systems offer reliable cable protection solutions for PLC, sensors, machining centers, industry robots and other demanding industrial applications.
Over Braided InterLocked Metal Liquid Tight Conduit for machine cables protection

Heavy Series Over Braided Flexible Conduit For Glass Industry Equipment Wiring

  • MADE FROM INTERLOCKED LIQUID TIGHT CONDUIT WITH WIRE OVER-BRAID:
    *Wire over-braiding provides more abrasion resistant, EMI shielding and resistance to hot metal splashes.
    *    Explosion proof.
    Liquid-tight.
    *Durable and long life.
    *High tensile strength.
    *Inner core made from  galvanized steel strip.
    *Interlocked construction prevents unraveling
  • Applications:
    This Flexible Metal Conduit is suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required.
    Braided flexible conduit for CNC machine wiring assembly
  • Related Products:
    Liquid tight flexible Metal conduit without wire over-braid. Suitable for machines.
    Model YF-706  Model YF-806
    Liquid tight metal conduit with nylon cord packing InterLocked Liquid tight Flexible Metal Conduit





Electrical flexible conduits for offshore oil and gas industry cable protection
Offshore & Heavy industrial wiring flexible conduit

Heavy Series Over Braided Flexible Conduit for high temperature industry applications
Heavy Series Over Braided Flexible Conduit for high temperature industry applications
Over Braided Flexible Metal Conduit offers excellent protection to cables against hot metal splash in steel mills. For steel mill retrofit.

 Stainless Steel Over Braided Liquidtight ConduitOver braided liquid tight conduit with nylon sealing cord

EMI/RFI Shielding conduit: This conduit is designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission from Electro-Magnetic and Radio Frequency Interference (EMI / RFI). This braided liquid tight flexible metal conduit is most suitable for radar equipments, airports, CNC machineries and PLC wirings in industrial environments. Industry Control Flexible Conduit

Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil
MIN. MAX. MIN. MAX.
SM-70103 3/8" 12.3

12.8

18.5 19.0 75 50
SM-70104 1/2" 15.7 16.3 21.8 22.3 95 50
SM-70106 3/4" 20.7 21.2 26.2 27.7 120 30
SM-70110 1"

26.2

26.8 33.8 34.4 180 30
SM-70112 1-1/4" 34.7 35.4 42.4 43.2 230 20
SM-70114 1-1/2" 40.0 40.6 48.4 49.3 270 20
SM-70120 2" 51.3 51.9 60.4 61.3 300 15
SM-70124 2-1/2" 62.9 63.6  73.1 74.0 350 10
SM-70130 3" 77.9 78.7 88.9 89.9 500 10
SM-70140 4"  101.6 102.6 114.3 115.3 650 5
SM-70150 5" 126.0 128.0 133.0 135.0 800 5
SM-70160 6" 149.0 151.0 156.0 158.0 1000 5
Stainless steel braid provides extra protection. This interlocked over braided liquid tight conduit is highly resistant to wear, abrasion and electric sparks or hot metal splashes. This conduit is also resistant to common oils and grease in industry environments and has good flexibility and good mechanical resistance. Interlocked over braided liquid tight conduit also offers good protection against electromagnetic interference across a large wave band.
delikon.com
Download the catalog page for DELIKON SM-701 Over Braided Interlocked Liquid Tight ConduitDownload the catalog page for DELIKON SM-701 Over Braided Interlocked Liquid Tight Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.
delikon.com
Over braided flexible conduit for industry automation cable protectionHeavy Series Over Braided Liquid Tight Conduit
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.         Also Refer To: Braided Flexible Metal Conduit, Water Proof

Shielding over braided flexible conduit shields sensitive equipment and circuits from EMI/RFI emissions

Heavy series over braided flexible conduit and swivel connectorHeavy Series Over Braided Flexible Conduit for high temperature industry applications. Thanks to its resistant outer casing of braiding, heavy series Over braided flexible conduit is ideal for use in high temperature industrial applications with sparks, weld slag or hot swarf. Heavy series Over braided flexible conduit is particularly suitable for metal industry. Swivel Fittings are ideal for high vibration machine applications. Available with male or female G, PG, METRIC or NPT Thread
 Electrical flexible conduit
Over braided flexible conduit with swivel fittings are ideal for metal industry wiring applications
Delikon Heavy Series Over Braided Flexible conduit and Heavy Series Fittings protect industrial ethernet cabling, Maximizing your uptime and performance
 Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Military Circular Connector BackshellCritical industrial networking applications can not afford data transmission errors that cause downtime or safety concerns. Delikon Heavy Series Over Braided Flexible conduit and Heavy Series Fittings increase their ability to withstand the harsh conditions of industrial applications. From heavy series over braided liquid tight conduit to EMI termination connector, Delikon flexible conduit solutions guarantee maximum uptime, premium performance, and superior durability.
Delikon Heavy Series Over Braided Flexible conduit and Heavy Series Fittings protect industrial ethernet cabling, Maximizing your uptime and performance. Delikon EMI shielding Heavy Series Over Braided Flexible conduit and Heavy Series Fittings protect rolling mill automation control system cables.
Delikon EMI shielding Heavy Series Over Braided Flexible conduit and Heavy Series Fittings protect rolling mill automation control system cables.
Swivel Heavy Series Conduit Fittings provides easy and effective EMI termination of the shieldFor the tasks of switchover from the obsolete control system to the new automation controller for Roughing Mill, Delikon EMI shielding Heavy Series Over Braided Flexible conduit and Heavy Series Fittings prove to be the best cable protection solution. The stainless steel braiding protect automation cables against molten Metal Splash, Slag, and Sparks as well as provide emi shielding to the electrical and data cables of the automation system. The heavy series connector provides a continuous grounding path and a full 360 degrees effective shield termination of the braiding. Delikon EMI shielding Heavy Series Over Braided Flexible conduit and Heavy Series Fittings are designed for use in the environment of industrial applications.
Delikon Industry 4.0 Flexible Conduit and Connector
Delikon steel mill and petrochemical industry automation wiring waterproof Heavy Series Over Braided Flexible Metal Conduit and Heavy Series Flexible Conduit Fittings Delikon steel mill and petrochemical industry automation wiring waterproof Heavy Series Over Braided Flexible Metal Conduit and Heavy Series Flexible Conduit Fittings

Delikon Heavy Series Over Braided Flexible Metal Conduit is widely used to counter mechanical stress and is flexible, and it is resistant against tensile stresses as well as transverse pressure. The stainless steel wire braiding covering of this heavy series conduit also offers excellent protection to cables against hot metal particles, sparks, slag, and immunity from electromagnetic interference. Together with the heavy series connector, Delikon Heavy Series Over Braided Flexible Metal Conduit provides reliable protection to IT and Automation Systems Cables in the Metal and Petrochemical Industry.
