Water-tight PVC Coated Flexible Metallic Conduit  ( YF-707 ) PVC jacketed flexible metallic conduit for lighting fixtures cables protection



This PVC jacketed flexible metallic conduit is suitable for use in both static applications where a tight bend diameter is needed and in dynamic use such as machining centers and robotics.
Flexible Steel Reinforced PVC Coated Conduit
Vacuum jacketed flexible steel conduit for high-flex installations (VJC)
Also widely used for lighting fixtures cables protection.

*Galvanized steel strip core  (Delikon metal locked or interlocked)
*PVC Covered *1/4"~6" trade size *Water-tight
 pvc jacketed conduit pvc jacketed conduit

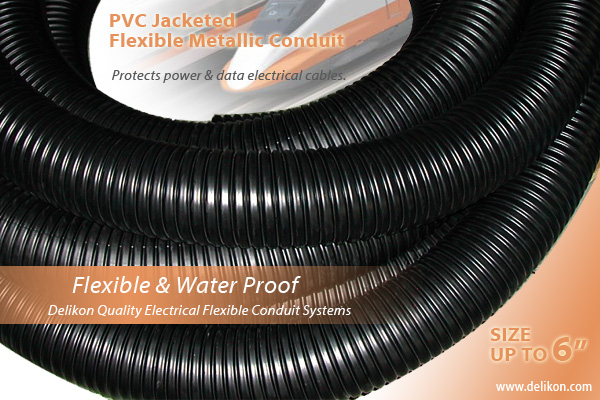

PVC Jacketed Flexible Steel Conduit

Metal Flexible Conduit with Vacuum PVC coating
Delikon flexible conduit
A unique Delikon vacuum coating process allows a flexible metallic conduit to have a flexible PVC jacket which does not restrict the excellent flexibility characteristics of the inner metal core.

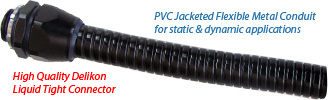

Steel Flexible Conduit with Vacuum PVC coating,liquid tight connector
The PVC jacket is resistant to water and most types of oils and greases. This flexible conduit is extremely flexible as well as offering satisfactory levels of mechanical resistance.

Water tight pvc coated flexible metallic conduits

Power Plant Flexible Conduit

Delikon flexible conduit and fittings for power plant wiring
  • A unique vacuum extrusion process allows this flexible metal conduit to have a flexible PVC jacket which does not restrict the great flexibility characteristics of the inner metal hose core.
  • Flexible metallic conduit with PVC jacket:
    *PVC jacket (VJC) provides water proof.
    *Durable and long life.
    *Inner core made from  galvanized steel strip.
    *Delikon Metal Locked construction for more flexibility or interlocked for more strength.


  • Applications:
    Appliances, automotive wire & cable sleeving, industrial equipments,medical devices, machineries, general wire conduits, air conditioning, heating and ventilation, telecom and fibre optics

    For halogen free conduit, plenum flexible conduit please refer to
    Low smoke,halogen free LSHF-707.
  • Related Products:
    With wire over-braid for abrasion resistant or EMI screening.

    >>> Model YF-704

    Overbraided flexible metal conduit,Liquid Resistant,EMI shield
    Braided Flexible metal conduit, water proof
    EMC Shelding

Without PVC covering for general dry location or plenum applications
>>> Model YF-703

Flexible metal conduit
Flexible Galvanized Steel Conduit


HIGH TEMPERATURE HEAVY SERIES over Braided Flexible Metal Conduit for steel mill cable retrofit
Overbraided Flexible steel conduit


Liquid Tight Conduit for higher IP rating application

>>> Model YF-706
Liquid tight flexible metal conduit
Liquid tight flexible metal conduit



Machine Grey liquid-tight flexible steel conduit is used extensively in the machine tools.

Grey Liquid-tight Metallic Conduit
Liquid Tight Conduit, Liquid Tight Conduit Fittings for engineering and construction project

Stainless Steel Hose Stainless steel constructions
Small bore flexible conduit

Connectors with PG or Metric threadsPG & Metric threads

PG, Metric, NPT liquid tight connector for machine wiring

Delikon PVC covered flexible metal conduit & fittingsPVC covered flexible metal conduit is suitable for use in both static applications where a tight bend diameter is needed and in dynamic use such as machining centers and robotics. Most suitable for use with Delikon conduit fittings covering a broad range of electrical wiring applications.

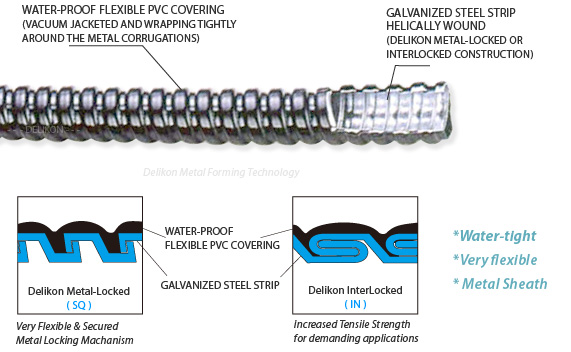

PVC Covered Flexible Metal Conduit with Delikon Metal Locked Constructionpvc jacketed conduit
DELIKON METAL LOCKED
(SQ)
DELIKON METAL LOCKED (SQ) PVC COATED FLEXIBLE METAL CONDUIT

Delikon Metal Locked
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70701-SQ - 7.8 8.2 11.2 11.6 50 100
YF-70702-SQ 1/4" 9.7 10.2 14.0 14.5 50 100
YF-70703-SQ 3/8" 12.3 12.8 16.7 17.2 50 50
YF-70704-SQ 1/2" 15.7 16.3 20.2 20.7 65 50
YF-70706-SQ 3/4" 20.7 21.2 25.5 26.1 75 50
YF-70710-SQ 1" 26.0 26.6 31.6 32.2 100 50
YF-70712-SQ 1-1/4" 34.7 35.4 40.8 41.5 125 30
YF-70714-SQ 1-1/2" 40.0 40.6 46.6 47.2 150 25
YF-70720-SQ 2" 51.3 51.9 58.1 58.7 175 20
YF-70724-SQ 2-1/2" 62.9 63.6 72.1 73.0 200 10
YF-70730-SQ 3" 77.9 78.7 87.9 88.9 225 10
YF-70740-SQ 4" 101.6 102.6 113.2 114.3 275 10
YF-70750-SQ 5" 125.0 127.0 137.0 139.5 300 5
YF-70760-SQ 6" 150.0 153.0 162.0 165.0 400 5

PVC Covered Flexible Metal Conduit with Delikon InterLocked Constructionpvc jacketed conduit
INTERLOCKED
(IN)flexible conduit
(HIGHER TENSILE STRENGTH)

Delikon Interlocked
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70701-IN - 7.8 8.2 11.2 11.6 50 100
YF-70702-IN 1/4" 9.7 10.2 14.0 14.5 50 100
YF-70703-IN 3/8" 12.3 12.8 16.7 17.2 50 50
YF-70704-IN 1/2" 15.7 16.3 20.2 20.7 65 50
YF-70706-IN 3/4" 20.7 21.2 25.5 26.1 75 50
YF-70710-IN 1" 26.0 26.6 31.6 32.2 100 50
YF-70712-IN 1-1/4" 34.7 35.4 40.8 41.5 125 30
YF-70714-IN 1-1/2" 40.0 40.6 46.6 47.2 150 25
YF-70720-IN 2" 51.3 51.9 58.1 58.7 175 20
YF-70724-IN 2-1/2" 62.9 63.6 72.1 73.0 200 10
YF-70730-IN 3" 77.9 78.7 87.9 88.9 225 10
YF-70740-IN 4" 101.6 102.6 113.2 114.3 275 10
YF-70750-IN 5" 125.0 127.0 137.0 139.5 300 5
YF-70760-IN 6" 150.0 153.0 162.0 165.0 400 5
Download the catalog page for DELIKON YF-707 PVC coated flexible steel conduit
Download the catalog page for DELIKON
YF-707 PVC Coated Flexible Steel Conduit in  PDF File format.
Delikon Large Diameter Liquid Tight Conduit and ConnectorDELIKON liquid tight conduit fittings,LT connector,LT fittings for use with pvc coated flexible metallic conduit. Available with ISO, Metric, PG, and NPT threads, male or female threads.
Delikon flexible conduit

with anodized black connectorpvc jacketed conduit
Vacuum jacketed flexible metal conduits for high-flex installations

Complete Range of Delikon Quality Liquid Tight Conduits IP67For increased IP protection
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible metallic conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
 flexible metallic conduit       Also Refer To:
Braided Corrugated Nylon Conduit

Delikon liquid tight stainless steel connector

Delikon Flexible Conduit and Fittings Systems Set Cable Protection Standards for Digital Factory
In today most advanced factories, an example of the Industry 4.0 concept, the facility machines and products communicate with each other in real time and all processes are IT managed and optimized. The result is exceptional levels of productivity and quality. All these rely on all the electrical and data cables in the factory are working properly. Delikon Flexible Conduit and Fittings Systems are here to protect the power and data cables of these digital factories. For example, if a robot is soldering an assembly onto a PCB, our heavy series over braided flexible conduit and fittings systems protect its control and power cables from the welding sparks. Delikon sees a huge opportunity in developing its flexible conduits and fittings to protect electrical and communication cables in digital factories.

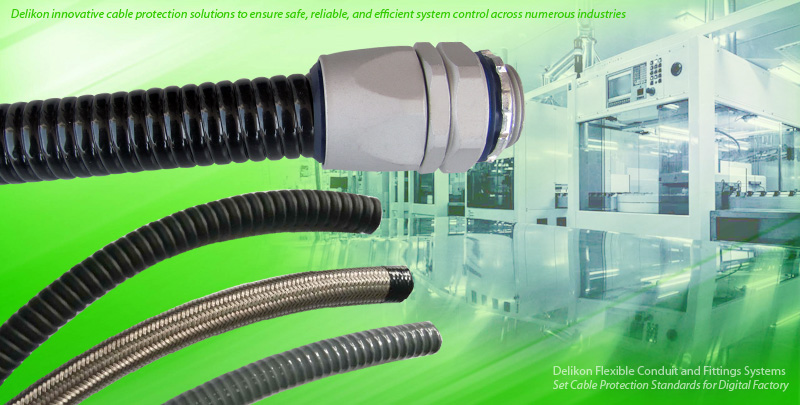

Delikon Flexible Conduit and Fittings Systems Set Cable Protection Standards for Digital Factory
