Aluminum Liquid Tight Connector, Fixed and Swivel Liquid Tight Conduit Fittings liquidtight connector liquidtight connector

Straight and Angle liquid tight connector for use with metallic and non-metallic "Type B" liquid tight conduit. flexible conduit flexible conduit
G, NPT, METRIC, PG Threads Liquid Tight Conduit Fittings for Industrial Wirings
* Liquidtight, Raintight, OilTight  * Suitable for wet locations and outdoor applications *Fixed & Swivel Types *IP67
This line of liquid tight connectors are very easy to install. Just slip the connector onto the conduit, twist and the connector will lock onto the conduit. No need to dissamble the sealing nut first! And save your labor time!

Delikon liquid tight conduit aluminum connector for use with Metal Liquid Tight Conduit or Non Metallic Liquid Tight Conduit (LFMC & LFNC). Male or Female Threads : PT, G, PF, PG, METRIC, NPT
High quality and durability are synonymous with the Delikon family of products, and the DELIKON YA line of Aluminum Liquid Tight connectors is no exception. Benefits of Delikon Liquid Tight Connector:
Superior environmental seal
Installation time savings
Reduce maintenance downtime
Secured connections in harsh industrial environments

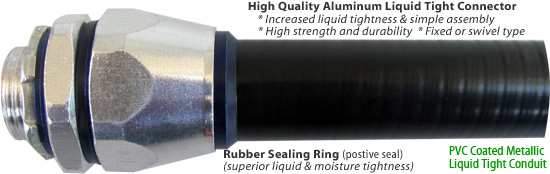

Rubber Cone Gasket with Sealing Nut Interior Cone Shape design for this line of liquid tight connector provides increased liquid tightness when the nut is tightened, positively keeping liquid and moisture out in demanding industry environments.

Rubber Cone Gasket of Delikon aluminium liquid tight connector provies positive liquid tightness
delikon.com

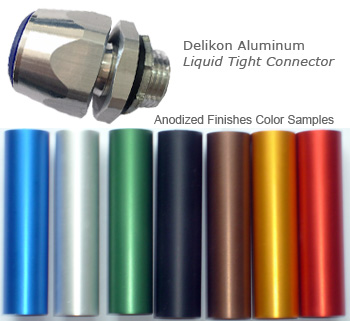

Delikon Anodized Aluminium Liquid Tight Connector

Anodized Liquid Tight Connector

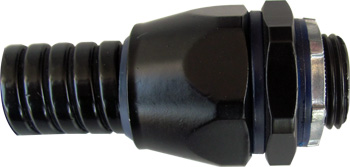

Black Color Painted Liquid Tight Connector and pvc coated flexible metallic conduit assembly

Black Color Painted Liquid Tight Connector

This line of aluminum liquid tight connectors are produced by (1) Machining of extruded aluminum rod, with polishing or anodized finish or by (2) Aluminum die casting with metal plating, painting or powder coating finishes
(1) By machining of extruded aluminum rod

(2) Or by aluminum die casting process

Aluminum Liquid Tight Connector,Liquid Tight Conduit Fittings

Aluminum die cast liquid tight fittings, IP 67

Polishing or
Anodized finish

Metal Plating, Painting or
Powder Coating finish

For producing this liquid tight connector, high-quality aluminum alloy is used for superior strength and durability. Aluminium liquid tight connectors with these unique configurations work perfectly with our whole range of flexible conduits and hoses, especially suitable for liquidtight conduit and PVC coated flexible metallic conduit.

Delikon aluminium liquid tight connector features:
* Aluminum construction of connector body and sealing nut for increased corrosions resistance
Aluminium liquid tight connector,fittings liquid tight conduit fittings
*
Different types of finishes available to meet different applications reuqirements: metal plating, painting, powder coating, polishing or anodized finishes.  All these provide increased corrosion resistance and durability of the liquid tight connector.

* Totally re-useable
* Unique sealing nut internal cone shape design for
simple assembly and superior water tightness.

* Fixed or swivel type for easy installations.
 Swivel connectors are best for vibrating machinery, such as motor or blower application

Delikon flexible conduit

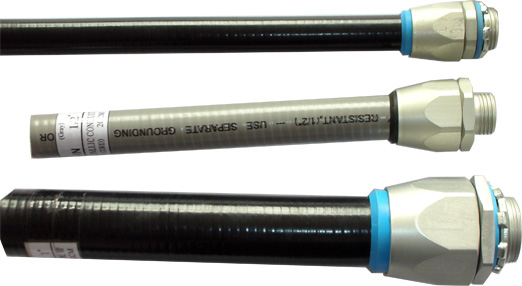

Liquid tight metal conduit and liquid tight connector High Quality Aluminum Liquid Tight Connector for pvc coated flexible metal conduit
liquidtight connector
Fixed Type Liquid Tight Connector Fixed Type: YAB
Fixed type liquid tight fittings

This liquid tight fitting can be inserted into a knockout and secured with a locknut. Or it could be installed in a threaded hole. Most suitable for connecting flexible conduits to electrical boxes or enclosures.
     YAB Aluminum Liquid Tight Connector (Fixed straight type)

Delikon Aluminum Liquid Tight Fittings Suitable for use with:
Coated Flexible Metal Conduit

PVC coated flexible metallic conduit

YF-707



Zero Halogen Water Proof Flexible Metal Conduit

LSHF-707


Liquid Tight Conduit

Liquid tight flexible metal conduit

YF-706



YF-806 InterLocked Liquid tight Flexible Metal Conduit

YF-806



Computer Blue Liquid Tight Conduit with integral copper bonding wire

YF-604



Thermoplastic Rubber Covered Steel Liquid Tight Conduit

YF-906



Stainless Steel Liquid Tight Conduit

YF-706-SS


Corrugated Nylon Conduit

PB corrugated nylon flexible conduit

PB


Non Metallic Liquid Tight Conduit (LFNC)
This liquid tight connector could be produced to fit LFNC

OEM applications:
We could customly produce this connector to fit your hose sample

Related Products:

Stainless Steel Liquid Tight Connector for Offshore and Chemial Industry

Stainless Steel Liquid Tight Connector for offshore and corrosive applications

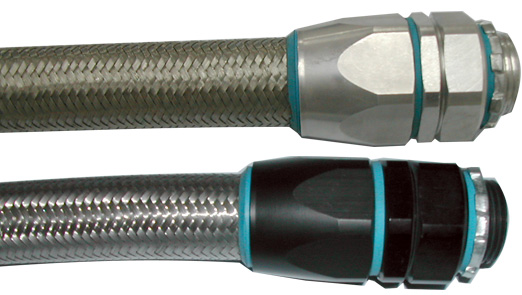

Over Braided Flexible Conduit Connector
Over Braided Flexible Conduit Connector

Delikon Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings are designed for steel industry control panels wirings, PLC wirings

Delikon Heavy Series Over Braided Flexible Conduit and Braided Conduit Fittings are designed for steel industry control panels wirings, PLC wirings
Fixed type: YAB liquid tight connector

Fixed Type

Catalog No.

Nominal Size

Connector Dimension (mm)

Threads

I.D.

A

B

C

D

YAB-03B

3/8"

10.5

20.3

24.0

11.0

41.0

G 1/2"

YAB-04B

1/2"

14.0

20.3

27.0

11.0

47.0

G 1/2"

YAB-06B

3/4"

17.7

25.7

34.0

13.0

54.0

G 3/4"

YAB-10B

1"

24.0

32.0

42.0

14.0

61.0

G 1"

YAB-12B

1-1/4"

33.0

41.0

52.0

16.0

68.0

G 1-1/4"

YAB-14B

1-1/2"

38.0

46.5

59.0

20.0

78.0

G 1-1/2"

YAB-20B

2"

49.0

59.0

71.0

20.0

83.0

G 2"

YAB-24B

2-1/2"

59.4

75.4

103.0

22.0

62.0

G 2-1/2"

YAB-30B

3"

75.8

87.5

120.0

22.0

65.0

G 3"

YAB-40B

4"

97.6

113.0

157.0

24.0

72.0

G 4"



Swivel Type

                 Swivel Type: YABR

Swivel aluminum liquid tight connector (self color,aluminum) Aluminium swivel liquid tight connector (BLACK)

The external thread swivels about the main body. It can be used with threaded entries or knockout secured with a locknut. Most suitable for installations requiring motion, vibration and bending.
                 YABR Aluminum Liquid Tight Connector (Swivel straight type)

Swivel Type: YABR swivel liquid tight connector

Swivel Type

Catalog No.

Nominal Size

Connector Dimension (mm)

Thread

I.D.

A

B

C

D

YABR-03B

3/8"

10.5

20.3

24.0

11.0

56.0

G 1/2"

YABR-04B

1/2"

14.0

20.3

27.0

11.0

62.0

G 1/2"

YABR-06B

3/4"

17.7

25.7

34.0

13.0

69.0

G 3/4"

YABR-10B

1"

24.0

32.0

42.0

14.0

78.0

G 1"

YABR-12B

1-1/4"

33.0

41.0

52.0

16.0

88.0

G 1-1/4"

YABR-14B

1-1/2"

38.0

46.5

59.0

20.0

100.0

G 1-1/2"

YABR-20B

2"

49.0

59.0

71.0

20.0

108.0

G 2"

YABR-24B 2-1/2" 59.4 75.4 103.0 22.0

82.0

G 2-1/2"
YABR-30B 3" 75.8

87.5

120.0

22.0

85.0

G 3"

YABR-40B 4" 97.6 113.0 157.0 24.0 92.0 G 4"


90 Degrees Connector
(fixed type)

Model Size 90 degrees
Fixed
Model Size

90 Degrees Liquid Tight Conduit Fittings,fixed type: YAL

YAL-03B 3/8" YAL-14B 1-1/2"
YAL-04B 1/2" YAL-20B 2"
YAL-06B 3/4" YAL-24B 2-1/2"
YAL-10B 1" YAL-30B 3"
YAL-12B 1-1/4" YAL-40B 4"

90 Degrees Connector
(swivel type)
Model Size 90 degrees
Swivel
Model Size

90 Degrees Liquid Tight Conduit Fittings,swivel type:YALR

YALR-03B 3/8" YALR-14B 1-1/2"
YALR-04B 1/2" YALR-20B 2"
YALR-06B 3/4" YALR-24B 2-1/2"
YALR-10B 1" YALR-30B 3"
YALR-12B 1-1/4" YALR-40B 4"


45 Degrees Connector
(fixed type)

Model Size 45 degrees

Fixed
Model Size

45 Degrees Liquid Tight Conduit Fittings,fixed type:YAH

YAH-03B 3/8" YAH-14B 1-1/2"
YAH-04B 1/2" YAH-20B 2"
YAH-06B 3/4" YAH-24B 2-1/2"
YAH-10B 1" YAH-30B 3"
YAH-12B 1-1/4" YAH-40B 4"

Standard Threads: G (EXTERNAL)   Pipe thread . With Lock Nut
Other Available Threads:
PF , PG , METRIC , NPT , INTERNAL THREADS

Download the catalog page for DELIKON Aluminum Liquid Tight ConnectorDownload the catalog page for DELIKON Aluminum Liquid Tight Connector in PDF File format.Complete Range of Delikon Quality Liquid Tight Conduits Or have a look at Delikon whole range of liquid tight conduits
*All sizes and dimensions listed above are subject to manufacturing tolerances. Delikon is constantly improving its flexible conduit and fittings products for best performance. Specifications mentioned in this web site are subjec to change without notice. Contact Delikon for latest information on its full line of flexible conduit and conduit fittings.
Delikon High Qulity Flexible Conduit Metal Connector

Conduit Connector marked with your logo
Connector with your logo

Marking Options:
Subject to minimum order qantity requirement, it is possible to mark your company's logo, model number, connector trade size or other information onto the connectors by offset printings. Most suitable for machine building industry applications: such as CNC machines, large industry projects or OEM products cable management.


PVC covered flexible metallic conduit with anodized black connector

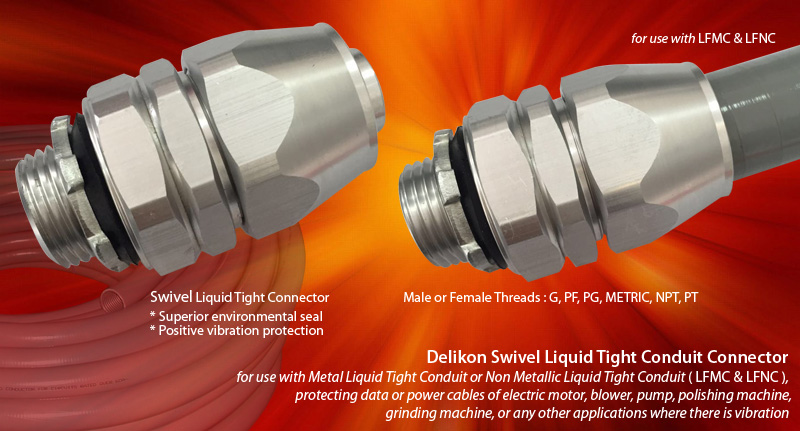

Delikon Aluminum Swivel Liquid Tight Conduit Connector is suitable for use with Metal Liquid Tight Conduit or Non Metallic Liquid Tight Conduit (LFMC & LFNC), and Coated Flexible Metal Conduit, protecting data or power cables of electric motor, blower, pump, polishing machine, grinding machine, or any other applications where there is vibration. Whether the application is power, control, or signal, data, Delikon Swivel Liquid Tight Connector offers superior environmental seal and positive vibration protection for use with motor drives and moving assemblies, providing secured and reliable connections for a variety of Industrial OEM Equipment and Factory Floor Automation Systems. Delikon Conduit Fittings excel in applications where flexibility, reliability, and durability are key.
Male or Female Threads : G, PF, PG, METRIC, NPT, PT                    Swivel Aluminum Liquid Tight Connector
Delikon Swivel Liquid Tight Conduit Connector for use with Metal Liquid Tight Conduit or Non Metallic Liquid Tight Conduit (LFMC & LFNC),and Coated Flexible Metallic Conduit, protecting data or power cables of electric motor,blower, pump,polishing machine, grinding machine, or any other applications where there is vibration. Whether the application is power, control, or signal, data, Delikon Swivel Liquid Tight Connector offers superior environmental seal and postive vibration protection for use with motor drives and moving assemblies, providing secured and reliable connections for a variety of Industrial OEM Equipment and Factory Floor Automation Systems. Delikon flexible conduit fittings excel in applications where flexibility, reliability, and durability are key.
Applications for High Quality Aluminum Connector - For use in Liquid Tight Conduit System,  Coated Flexible Metal Condiuit
Delikon extensive line of conduit connectors have many inherent features which offer application advantages and provide significant benefits. These features make the Delikon Conduit Connectors some of the most application friendly connectors available today, and insure quick and easy assembly, high reliability, and long, uninterrupted service life in tough industrial environments.
Liquid tight conduit with Aluminum liquid tight connector Delikon liquid tight conduit and liquid tight connector for power station






Liquidtight Metal conduit
is ideal when used with liquid-tight fittings for applications where a high degree of liquid tightness is required. This product is suitable for a number of general purpose wiring applications and ideal for environments with lots of water, coolant, and vibrations such as machine tool workshops.

InterLocked Flexible Metallic Liquid Tight Conduit

Liquidtight metal conduit is ideal when used with liquid tight fittings for applications where a high degree of liquid tightness is required.

Flexible, sleek, with increased IP ratings, Liquid-tight flexible metallic conduit (LFMC) is suitable for use in a variety of environments and applications from general purpose wiring in wet or damp locations, to direct burial and in concrete embedment, to raised computer room floors and site lighting jobs.
Flexible conduit
Zinc Die Cast Liquid Tight Connector Zinc Die Cast
Liquid-tight Connectors
0º  45º  90º
NPT Liquidtight Metal Connector

Related products: Delikon conduit fittings for over braided flexible conduit system

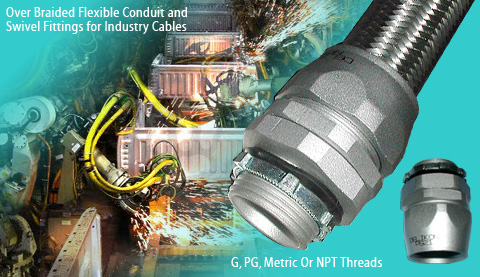

Over braided Flexible Conduit
