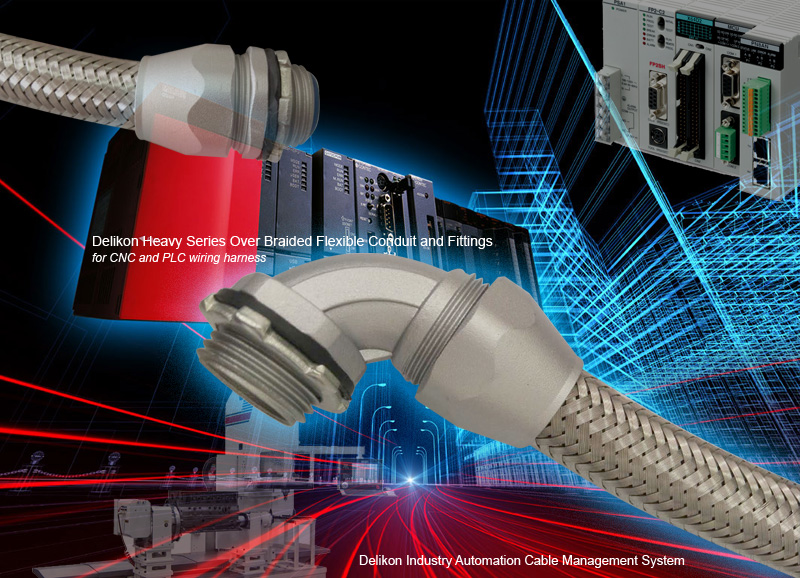

Delikon Heavy Series Over Braided Flexible Conduit and Fittings for CNC and PLC wiring harness
Industry automation cable management system
Most industrial equipment, for indoor or outdoor use, contains extensive electrical wiring between its components and subsystems. Delikon Heavy Series Over Braided Flexible Conduit and Fittings are designed to protect PLC, CNC Controls cables, Servo and Spindle Motors cables, MPG Cables, Drive Command Cables and cables in industry automation. Delikon Heavy Series Connectors simplify design, assembly and maintenance for CNC machining center and other modular machinery.
Delikon Heavy Series Over Braided Flexible Conduit and Fittings for CNC and PLC wiring harness, Industry automation cable management system. Most industrial equipment, for indoor or outdoor use, contains extensive electrical wiring between its components and subsystems. Delikon Heavy Series Over Braided Flexible Conduit and Fittings are designed to protect PLC, CNC Controls cables, Servo and Spindle Motors cables, MPG Cables, Drive Command Cables and cables in industry automation. Delikon Heavy Series Connectors simplify design, assembly and maintenance for CNC machining center and other modular machinery.
The over braided flexible conduits metal braiding is normally connected to earth via the heavy series metal connector to provide an electrical shield to screen the internal conductors from outside electromagnetic interference.It is widely used for protecting the input cables of PLCs where the voltage and current levels are low. With Delikon Over Braided Flexible Conduit System, these low level signals are screened from the interference generated by cables carrying higher power voltages and currents. Delikon Heavy Series Over Braided Flexible Conduit and Fittings are optimized for industry demanding operating conditions or requirements, harsh weather, extreme heat or corrosive environments, high load applications or where shielding from electromagnetic interference is required.
Whole Range Of Braided Conduits Provide Essential EMC Protection Cable protection hoses
Descriptions / Features
Suitable connectors
YABS, All metal connector for high temperature All METAL flexible conduit and ALL METAL connector for Plenum cable protection Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Stainless steel combination (internal thread) combination (set-screw)
YF-705YF-705 *Galvanized steel strip core (with Nylon cord packing) *PVC Covering *Wire over-braid *Trade size: 3/8"~4" *Liquid-tight *EMI/RFI shielding

  Galvanised Steel Conduit, Smooth PVC Covering, Steel Overbraid (IP 67)

YF-705Galvanised Steel Conduit, Smooth PVC Covering, Liquid Tight, Metal Overbraid. It is designed to protect sensitive electronic circuits in demanding industry applications.
SM-701SM-701 *Galvanized steel strip core (Interlocked constructions) *PVC covering *Metal wire over-braid *Trade size: 3/8"~4"  *Liquid-tight *EMI/RFI shielding
*
High tensile strength

  Galvanized Steel Conduit, Smooth PVC Covering, Steel Overbraid, High Strength

SM-701

For high tensile strength applications.
YF-704YF-704 *Galvanized steel strip core   *PVC covering *Wire over-braid *1/4"~6" trade size *Very Flexible *Water-tight *EMI/RFI shielding

  Galvanized Steel Conduit with PVC Covering, Steel overbraid (IP 54)

Strip-wound flexible metallic conduit hooked profile,PVC sheathing,galvanized steel wire braiding
BRAIDED Flexible metallic conduit, water proof, is typically used for steel mill machineries and petrochemical industries cable protection.
PBFPBF *Corrugated Nylon core  *Wire over-braid *1/4"~2" trade size
*Very Flexible, Light Weight
*Liquid-tight *EMI/RFI shielding
Corrugated Nylon Conduit, Steel Overbraid  (IP 67)
Stainless Steel overbraid nylon conduit for Harsh Environments, Offshore/PetrochemicalBraided corrugated nylon wiring conduits for all types of machinery. Light weight, especially suitable for Robot cables protections.
WNS/ORCWNS *Wire over-braid
*6mm - 25mm trade size
*Liquid-tight *Oil resistant
*EMI/RFI shielding
*Model ORC features an inner hose of high quality NBR rubber
Oil Resistant Conduit, Steel Overbraid  (IP 67)
WNSOil Resistant Flexible Conduit is especially suitable for wiring machine
tools, and hydraulic presses,
which are subjected to moisture from coolant, oils and fluids.
SM70001
Braided Flexible Metal Conduit
*Galvanized steel strip core    *Wire over-braid *3/8"~6" trade size *All metallic for high temperature applications *EMI/RFI shielding *High Temp.  Galvanized Steel Conduit, Steel overbraid (IP 40)
Strip-wound flexible metallic conduit,hooked profile,steel wire braiding
Overbraided Flexible Steel Conduit
with Steel Braid, resists hot metal splashes. It is resistant against tensile stresses and transverse pressure.
AT-SL-BRAIDED
braided small ID tubing
*Metal wire over braided small bore tubing
*3.5mm - 12.7mm ID.
*All metallic for high temperature applications
*EMI/RFI shielding
Stainless Steel Conduit, Steel Overbraid (IP 40)

with metal wire braidingHigh tensile strength metal wires are tightly braided onto the AT-SL small bore flexible square locked metal tubing for optimum protection. It provides increased abrasion resistant, improved EMI screening, and resists hot metal splashes. Most suitable for industry and automobile wiring harness.

SC
Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit
*Inner Stainless steel flexible hose with fibre glass cord packing *Triple layers stainless steel wire braidings *high level of thermal resistance for combustion equipment wiring Triple Stainless Steel Over Braided Flexible Stainless Steel Conduit (IP 50)

The inner hose is made from helically wound stainless steel strip with DELI-LOK profile. A high strength fibre glass cord pulls the inner hose metal corrugations tightly together. The triple layers stainless steel wire braidings provides high resistance against wear, good mechanical resistance together with good protection against electro-magnetic interference.Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit for combustion equipment power and data cable protection

Assembly
Braided flexible conduit assembly
Overbraided systems --- with connectors pre-assembled --- save time and labor costs.
Electric Flexible Conduit systems for EMI shielding, abrasion and hot metal splashes resistance. Comprises a standard conduit construction, with metallicConnectors and fittings for braided flexible conduit overbraid.
Typically used for machineries, steel mills and petrochemical industrial cable protection
    Over Braided Flexible Steel Conduits For Industry Wirings  FLEXIBLE EMC SCREENING CONDUITS

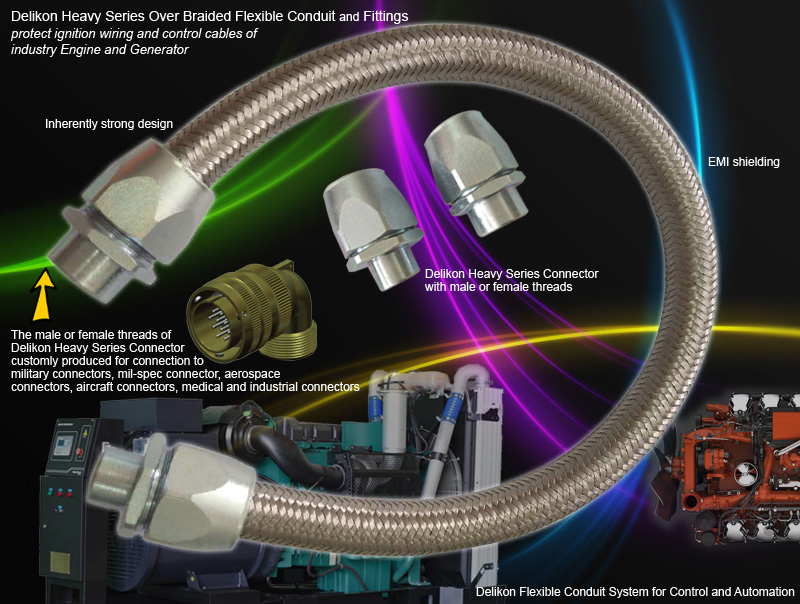

Delikon Heavy Series Over Braided Flexible Conduit and Fittings protect ignition wiring and control wiring of industry Engine and Generator
Delikon is a technology leader in the design, manufacture, and supply of high-performance electrical flexible conduit and fittings systems for a broad range of industrial applications, including medical equipment, factory automation, heavy equipment, instrumentation, motion control, rail mass transportation, alternative energy, and natural resource exploration.

Today, most state-of-the-art- hospitals, five star hotels, business process outsourcing centers, manufacturing plants, telecommunications organizations, commercial buildings, data centers, emergency facilities, large industries, and mining companies require uninterrupted power and have backup engine generators. Delikon Heavy Series Over Braided Flexible Conduit and Fittings are
designed to protect ignition wiring and control wiring of industry Engine and Generator. The male or female threads of our connector could be customly produced for connection to military connectors, mil-spec connector, aerospace connectors, aircraft connectors, medical and industrial connectors. Delikon offers one of the largest selections of industrial wiring electrical flexible conduit and fittings.

Delikon manufacture flexible conduit assembly for Cable Assemblies and Wire Harnesses in markets including: military, aerospace commercial industries,medical, industrial, network communications, process control, transportation, and heavy equipment. Delikon flexible conduit assemblies are built in accordance to strict specifications. The flexible conduit systems need to protect the connection from harsh environmental factors and their inherently strong design allows them to do so.
Delikon Heavy Series Over Braided Flexible Conduit and Fittings protect ignition wiring and control wiring of industry Engine and Generator
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automotive and steel industry automation Ethernet cable, UTP unshielded twisted-pair cable, PLC cable, power and data cable

Industrial applications such as the automotive or steel factory floor are typically electrically noisy environments. Switching heavy loads, inductive heaters, large transformers, generators, and robotics can all present high levels of both conducted and radiated EMI. There are thousands of applications where the EMI RFI in the location is so high it causes problems with the Ethernet link. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector effectively isolate wires from the environment through which the cable runs, combating the effects of EMI. The heavy series metal connector clamp the over braiding tightly forming electrical contact around the entire periphery of the shield, providing a
360 degrees SHIELD termination. The complete Delikon heavy series braided flexible conduit and connector assembly provides a low impedance path to ground and delivers a relatively thick and exceptionally conductive boundary around the cables that reflects and absorbs disruptive signals. Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable

Delikon Military Circular Connector Backshell, Conduit Adapter, is designed to connect a cylindrical connector to flexible conduit. Together with Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector, this over braided flexible conduit assembly provides reliable protection to the cables connecting to MilitaryConnector and is widely used for the automotive, robotics, machine tool and welding industries, as well as industry automation cable protection and numerous other commercial applications from heavy equipment to ECG monitoring cables.
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automotive and steel industry automation Ethernet cable, UTP unshielded twisted-pair cable, PLC cable, power and data cable. Industrial applications such as the automotive or steel factory floor are typically electrically noisy environments. Switching heavy loads, inductive heaters, large transformers, generators, and robotics can all present high levels of both conducted and radiated EMI. There are thousands of applications where the EMI RFI in the location is so high it causes problems with the Ethernet link. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector effectively isolate wires from the environment through which the cable runs, combating the effects of EMI. The heavy series metal connector clamp the over braiding tightly forming electrical contact around the entire periphery of the shield, providing a 360 degrees SHIELD termination. The complete Delikon heavy series braided flexible conduit and connector assembly provides a low impedance path to ground and delivers a relatively thick and exceptionally conductive boundary around the cables that reflects and absorbs disruptive signals.
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector solutions for the
automotive industry cable protection


With Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector automation cable protection solutions for automotive manufacturing processes, you will achieve higher and more consistent productivity, without compromising on flexibility. From the outset, Delikon has partnered with the automotive industry to develop innovative and high performance cable protection flexible conduit system solutions for automotive production processes. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector help automotive industry reduce down time due to power or data cable failure and achieve performance, availability and profitability for all manufacturing processes. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automation cables in Body shop, Paint shop, and Final assembly.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect spot welders and stud welding machines cables, industry automation cables and motion control cables from welding sparks and spattered hot metal pieces. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector provides mechanical protection as well as EMI shielding to communications cables linking all computers and controls in Assembly and Paint shop. Delikon Over Braided Flexible Polyamide Corrugated Conduit and Heavy Series Metal Conduit Fittings are widely used to protect industrial robots cables.
Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 power, signal and data cables
Delikon steel mill Automation revamp cable protection emi shielding heavy series over braided flexible conduit, heavy series connector, union for threaded end rigid conduit and flexible sheath, heavy series female connector with internal threads
Delikon steel mill Automation revamp cable protection emi shielding heavy series over braided flexible conduit, heavy series connector, union for threaded end rigid conduit and flexible sheath, heavy series female connector with internal threads
Delikon steel mill Automation revamp cable protection emi shielding heavy series over braided flexible conduit, heavy series connector, union for threaded end rigid conduit and flexible sheath, heavy series female connector with internal threads
Automation Revamp makes steel mill ready for Industry 4.0.
Delikon is responsible for the basic and detail cable management engineering as well as for the supply of core cable protection components for the steel mill, encompassing the installation of new emi shielding heavy series over braided flexible conduit, heavy series connector for protection of automation and control cables as well as the upgrade of the old cables.
Delikon heavy series connectorDelikon emi shielding heavy series over braided flexible conduit, heavy series connector increases steel mill competitiveness through the reduction of down time due to cable failure, increase of productivity and reduction of production costs by providing mechanical protection as well as emi shielding to crucial control, sensor, actuation and drives, communication and automation cables.
Delikon works with a wide range of industrial customers in many different fields to provide flexible conduit assemblies that meet the rugged requirements for industrial environments. We use the appropriate over braided flexible conduit, optimized for abrasion resistance and tensile strength, along with highest quality heavy series connectors, union, including swivel connector, backshell adapter and other industrial connectors, and combine them with weatherproof gasket, emi shielding terminating metal clamping ring to construct a reliable and durable emi shielding flexible conduit assembly.

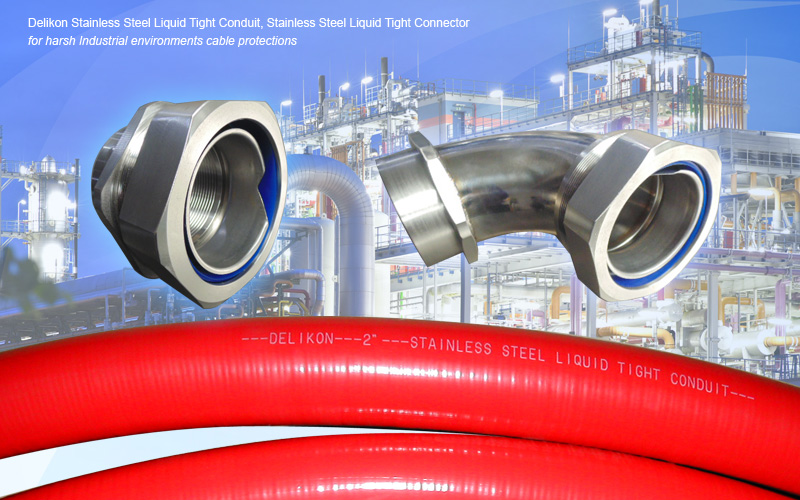

Delikon Stainless Steel Liquid Tight Conduit, Stainless Steel Liquid Tight Connector

for harsh Industrial environments cable protections

Harsh environments similar to those found in water and wastewater facilities can affect the ability of an electrical conduit and connector to protect the cables contained within, leading to a multitude of problems. Problems can include dangerous system collapses, production downtime, personal injury, and increased long-term maintenance costs and losses in customers. Consequently, it is critical for specifiers to choose the right flexible conduit systems that prevent complications. Ruggedly designed, engineered, and constructed, Delikon Stainless Steel Liquid Tight Conduit and Stainless Steel Connector provide solutions for harsh-duty manufacturing environments such as oil industry, automotive, food and beverage, material handling and commercial vehicles. With sealed, IP67 rating, Delikon stainless steel liquid tight conduit system is designed to withstand harsh Industrial environments. Delikon stainless steel liquid tight connectors patented anti-vibration feature prevents back-out in high vibration applications.
Ruggedly designed, engineered, and constructed, Delikon Stainless Steel Liquid Tight Conduit and Stainless Steel Connector provide solutions for harsh-duty manufacturing environments such as oil industry, automotive, food and beverage, material handling and commercial vehicles. With sealed, IP67 rating, Delikon stainless steel liquid tight conduit system is designed to withstand harsh Industrial environments.

Delikon Stainless Steel Liquid Tight Conduit and Stainless Steel Connector System
