Electromagnetic Shielding Over Braided Flexible Conduit

EMI/RFI SCREENING

Braided-shield flexible conduit provids excellent Radio Frequency,as well as mechanical protection to the wirings and cables.
Braided-shield flexible conduit, Screen Flex

typically used for industry control systems
, machineries and petrochemical industrial cable protection

*1/4"~4" trade size  *EMI/RFI shielding *Resists hot metal splashes *Abrasion resistant braided flexible conduit

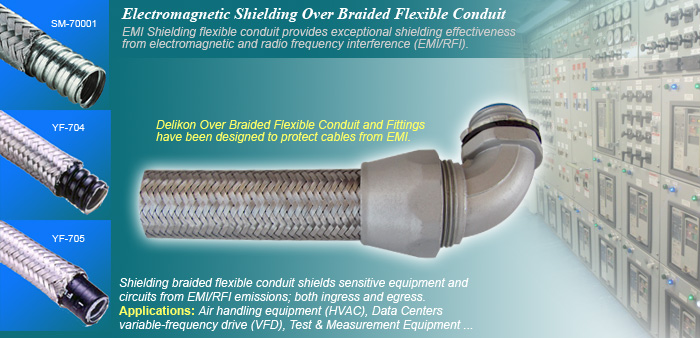

In environments such as airport or factory work shop, where higher than normal levels of electromagnetic radiation are present, power or data systems could be vulnerable to Electro Magnetic Interference (EMI). Delikon Over Braided Flexible Conduit has been designed to protect cables from EMI.

Electromagnetic Shielding Over Braided Flexible Conduit

EMI Shielding over braided flexible conduit provides exceptional shielding effectiveness from electromagnetic and radio frequency interference (EMI/RFI). Use it to protect sensitive electronic circuits from outside noise in such applications as communications, radar and data transmission. Shielded flexible conduit does not just keep interference out; it also keeps emissions in, which is vital to meeting EU standards.

Shielding flexible conduit shields sensitive equipment and circuits from EMI/RFI emissions; both ingress and egress. Connector assemblies include a grounding ferrule that contacts the conduit internal metallic material with the connector body, producing a direct shield-to-drain (ground) simply by tightening the connector. Its flexibility and simple assembly means it takes less time to install.

Over Braided Flexible Conduit is most suitable for installations in demanding industry environments, thereby giving increased protection to your critical power and data cabling
Applications :
Air handling equipment (HVAC)
Test & Measurement Equipment
Data Centers
Radio Broadband/Antenna
Solar / Wind Energy
Variable-frequency drive (VFD)
Ship Building
Medical Diagnostic Equipment
Wireless Communications
Healthcare / Medical
Overbraided systems---
Electric Flexible Conduit systems for EMI & RFI shielding, abrasion and hot metal splashes resistance
These braided conduits are used to protect sensitive electronic circuits such as communications, radar, and data transmission from outside interference or "noise". These conduits are also used when the reverse situation is also an issue. Comprises a standard conduit construction, with metallic overbraid.
Typical electric wiring and cables protections applications where the following is a consideration:
Whole Range Of Braided Conduits Provide Essential EMC ProtectionElectromagnetic Interference (EMI)
*computers rooms *telecommunications
*control systems braided flexible conduit

Abrasion resistance braided flexible conduit
*railway rolling stock *heavy duty industrial cable management applications braided flexible conduit
Mechanical integrity braided flexible conduit
*security/CCTV *anti-vandal applications
Hot metal splashes resistance
*steel & iron mills *petrochemical plants

Hot metal splashes resistance

YF-705YF-705 *Galvanized steel strip core (with Nylon cord packing) *PVC Covering *Wire over-braid *Trade size: 3/8"~4" *Liquid-tight *EMI/RFI shielding

YF-705
FLEXIBLE METAL CONDUIT, BRAIDED, LIQUID TIGHT

SM-701SM-701 *Galvanized steel strip core (Interlocked constructions) *PVC covering *Metal wire over-braid *Trade size: 3/8"~4"  *Liquid-tight *EMI/RFI shielding
*
High tensile strength
SM-701

FLEXIBLE METAL CONDUIT, BRAIDED, LIQUID TIGHT
YF-704YF-704 *Galvanized steel strip core   *PVC covering *Wire over-braid *1/4"~4" trade size
*Water-tight *EMI/RFI shielding
YF-704
FLEXIBLE METAL CONDUIT, BRAIDED, WATER PROOF
PBFPBF *Corrugated Nylon core  *Wire over-braid *1/4"~2" trade size

*Liquid-tight *EMI/RFI shielding
PBF
FLEXIBLE CORRUGATED NYLON CONDUIT, BRAIDED, LIQUID TIGHT
WNSWNS *Wire over-braid *6-25 trade size

*Liquid-tight *Oil resistant
*EMI/RFI shielding
WNS
FLEXIBLE OIL RESISTANT CONDUIT, BRAIDED, LIQUID TIGHT
SM70001
*Galvanized steel strip core    *Wire over-braid *3/8"~4" trade size *All metallic for high temperature applications *EMI/RFI shielding
*High Temp.
SM70001
FLEXIBLE METAL CONDUIT, BRAIDED, ALL METAL CONSTRUCTION
AT-SL-BRAIDED
braided small ID tubing
*Metal wire over braided small tubing
*3.5mm - 12.7mm ID.
*All metallic for high temperature applications *EMI/RFI shielding

with metal wire braiding

High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible square locked metal tubing for optimum protection from abrasions or hot metal splashes.

 FLEXIBLE EMC SCREENING  Offshore Applications  For Mining & Metal Industry
Related Products:  Cut to length flexible conduit with connectors

Assemblies
Flexible Water Proof Metal Conduits Assemblies
       Liquid-tight Flexible Steel Conduit Systems
     Liquid-tight Flexible Steel Conduit Systems
braided flexible conduit
EMI screening and antistatic braided flexible conduitEMC Shielding flexible conduits
Where applications are within arduous areas then Delikon braided flexible conduit systems offer a
complete protection in addition to EMI screening and antistatic characteristics. They are suited to the most demanding environments and the metal outer braiding can be used to suit demanding conditions.
Typical application within automation using Braided Flexible Conduit systems include, pick-n-place robotics, material handling systems, conveyor and loading systems, inspection, measurement and test in addition to automated cleanroom installations.
Electrical Over Braided Flexible Steel Conduits for heavy industry wirings YF-705 (IP67)YF-705

YF-704 (IP54)YF-704


SM70001(IP40)SM70001

Electrical Over Braided Flexible Steel Conduits for heavy industry wirings


To provide superior protection and immunity from electromagnetic interference, as well as increased mechanical abrasion resistance, Delikon has introduced the above complete line of Overbraided Flexible Metal Conduits systems that could meet your heavy industry wiring requirements
