Squeeze Type BX-Flex Connector (Flexible Metal Conduit Fittings) liquidtight connector conduit Flexible Metal Conduits available in different materials, coverings, and a wide range of sizes

Material: Zinc Die Cast, most suitable for use with flexible metal conduit

Used to connect flexible metal conduit or armored cable to box or enclosure.

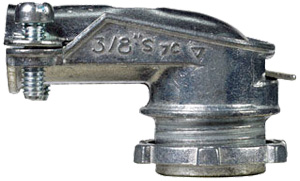

 Squeeze Type BX-Flex Connector,straight    Squeeze Type BX-Flex Connector,90 degrees

  • Squeeze type flexible metal conduit connector:
    conector recto hermetico
    *Connecting the flexible conduits to electrical boxes, enclosures
    and machineries housings.
    conector recto hermetico
  • Straight or Elbow

 Related Products:

For Braided Flexible Conduit System
Connector For Braided Flexible Conduit System

Braided Flexible Metal Conduit System is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. Connectors and fittings for braided flexible conduitBraided flexible conduit also offers excellent protection against hot metal particles, and immunity from electromagnetic interference. Braided flexible steel conduits are most suitable for use in Hazardous Locations, industrial environments and high temperatures wiring applications.
    90 degrees Stainless Steel Liquid Tight Fittings for corrosion environments
Stainless Steel Liquid Tight Fittings for corrosion environment

Model: DMG 0º                 Model: DMH 90º

 Squeeze Type Fittings For Flexible Metal Conduit  ( Straight & 90 Degrees)

Squeeze Type BX-Flex Connector

Model No.

Trade Size

Dimension (mm)

D

A

B

C

DMG-04B

1/2

23.5 25.5 12.5 34

DMG-06B

3/4

28.6 27 12.5 38

DMG-10B

1

35 30.5 14.5 45

DMG-12B

1-1/4

41.5 33 15 53

DMG-14B

1-1/2

48.8 34.5 16 62.5

DMG-20B

2

62.5 37 18 75
DMG-24B 2-1/2"
DMG-30B 3"
DMG-40B 4"
Squeeze Type BX-Flex Connector

Model No.

Trade Size

Dimension (mm)

E

A

B

C

DMH-03B

3/8

16 33.5 10 31

DMH-04B

1/2

23.5 42 11 44

DMH-06B

3/4

28.6 46 12 50

DMH-10B

1

35 65 14 65

DMH-12B

1-1/4


DMH-14B

1-1/2


DMH-20B

2


DMH-24B 2-1/2"
DMH-30B 3"
DMH-40B 4"
Complete Range of Delikon Quality Liquid Tight Conduits
Liquid-tight zinc die cast connectors
*Available in 3/8 inch to 4 inch trade size
*Zinc Die-cast construction
*For use with both Metallic Liquid tight Conduit
  and Nonmetallic Liquid tight Type B
*Resistant to outdoor weather conditions
*Liquidtight/Raintight/OilTight DMA DMB DMA
*Suitable for wet locations liquidtight conduit
*Suitable for grounding (through 1-1/4")
*Locknut included liquidtight conduit liquidtight

liquidtight connector liquidtight connector
Heavy Industry Electrical Flexible Conduit Products:Over Braided Flexible Steel Conduits for heavy industry        NEWS
Metallic Liquid tight Conduit Flexible Liquid Tight Metal Conduit
Liquid Tight Connectors & Fittings
Most suitable for Connecting flexible conduit to electric box or enclosure.
LT liquidtight Connectors offer excellent pull-off characteristics.
